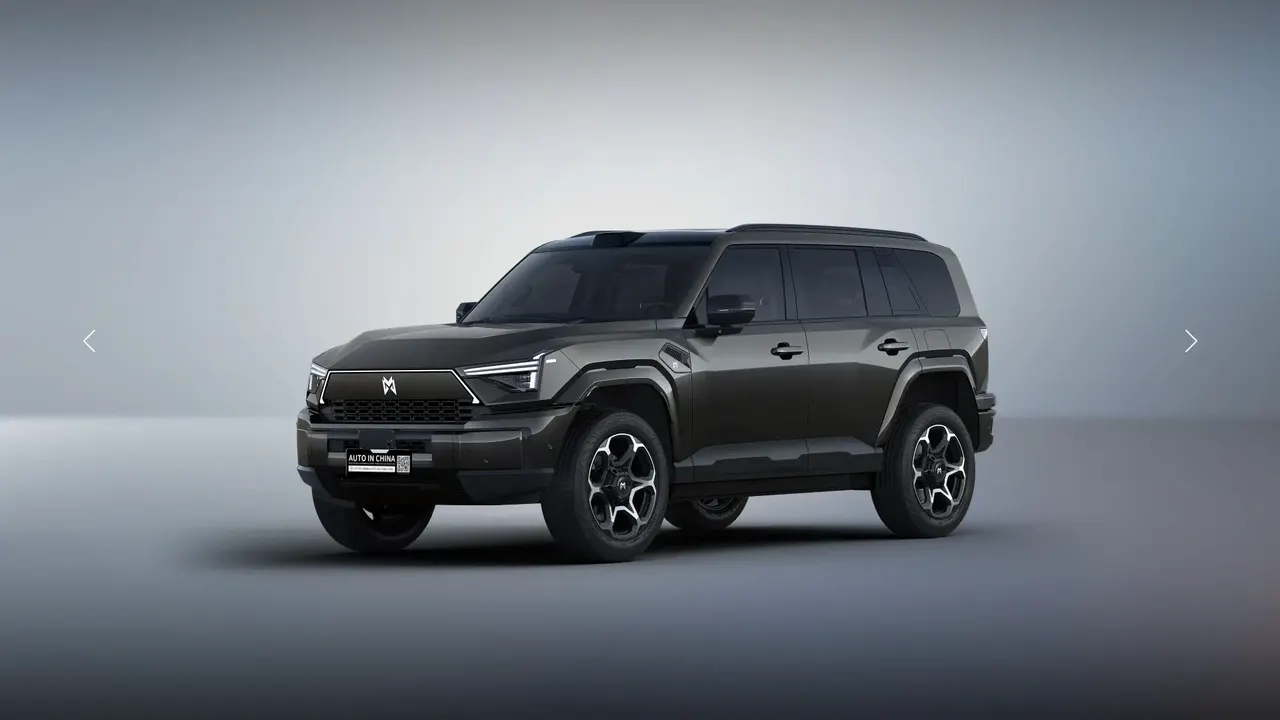

M-HERO M817 SUV

Scroll across to compare the listed editions. Confirm the exact edition and equipment with your quotation.

BASIC PARAMETERS
Model Name	MHERO II (M817) E0 GCC Off-Road Edition
Vehicle Type	Plug-in Hybrid Large Luxury Intelligent Off-Road SUV
Brand	MHERO (Mengshi Technology)
Body Style	5-Door 5-Seat Body-on-Frame Hardcore SUV
Body Structure	Body-on-Frame Full Aluminum Chassis
L×W×H (mm)	5100 × 1998 × 1899
Wheelbase (mm)	3005
Front / Rear Track (mm)	1710 / 1707
Curb Weight (kg)	2817
Max. GVW (kg)	3395
Max. Loaded Mass (kg)	3395
Seating Capacity	5-Seat
Fuel Tank Capacity (L)	84 (95# Gasoline)
Cargo Volume (L)	828–2112 (rear seats folded)
Drivetrain	Intelligent AWD (Dual Motors)
Steering Position	LHD (Left-Hand Drive)
Top Speed (km/h)	180
0–100 km/h Acceleration (s)	5.2
Emission Standard	China 6B (≈ Euro 6)
Environmental Certification	GCC / GSO Conformity Assessment Passed
ENGINE & POWERTRAIN
Engine Model	DFMC15TE6
Engine Type	1.5L Turbocharged Inline 4-Cylinder 16-Valve
Displacement (mL)	1497
Max. Power (kW / PS)	145 kW / 197 PS @ 5500 rpm
Max. Net Power (kW)	137
Max. Torque (N·m)	290 N·m @ 2000–4000 rpm
Fuel Grade	92# or above (95# recommended for GCC)
Fuel Injection	Direct Injection (GDI)
Cylinder Layout	Inline 4-Cylinder
Valves per Cylinder	4
Valvetrain	DOHC Dual Overhead Camshaft
Cylinder Head / Block Material	Aluminum Alloy
Transmission Type	2-Speed DHT (Dedicated Hybrid Transmission)
Number of Gears	2 (DHT)
Transmission Description	Dedicated 2-Speed Intelligent Hybrid Transmission
Motor Type	Permanent Magnet Synchronous Motor (Front + Rear Dual Motors)
Number of Drive Motors	2 (Front + Rear)
Front Motor Max. Power (kW)	200
Front Motor Max. Torque (N·m)	350
Rear Motor Max. Power (kW)	205
Rear Motor Max. Torque (N·m)	410
Total Motor Power (kW / PS)	405 kW / 551 PS
Total Motor Torque (N·m)	760
System Combined Max. Power (kW / PS)	505 kW / 687 PS
System Combined Max. Torque (N·m)	848
Wheel-End Max. Torque (N·m)	11,163 (Industry-Leading)
Power Benchmark	Comparable to 6.0T Fuel Engine
4WD Type	Electric AWD (Intelligent Full-Time 4WD)
PHEV Architecture	2-Speed Longitudinal 11-in-1 PHEV Architecture
BATTERY & CHARGING
Battery Type	LFP (Lithium Iron Phosphate)
Battery Capacity (kWh)	31.7
Cell Brand	CATL (Contemporary Amperex Technology Co. Limited)
Battery Cooling	Liquid Cooling
Pure Electric Range (CLTC, km)	140
Pure Electric Range (WLTC, km)	110
Combined Range (CLTC, km)	1,300
Combined Range (WLTC, km)	1,113
DC Fast Charge Standard	EU CCS2 (GCC EU Standard)
Fast Charge Time (20→80%)	15 min (0.25 h)
Slow Charge Time (20→100%)	4.3 hours
V2L External Discharge	3.6 kW
Parked Generation Power	25 kW (adds approx. 110 km range per hour)
Battery Safety Protection	10-Layer Underbody Armor Protection
Bottom Ball Impact Test	1600 Joules (10× National Standard)
Battery Management System	Intelligent BMS Active Safety Management
Charge Port Location	Right Side of Vehicle
CHASSIS & SUSPENSION
Body Structure	Body-on-Frame Full Aluminum Chassis
Body Longitudinal Beam	1920 mm One-Piece Formed Extra-Long Beam (Hydroforming)
High-Strength Steel Ratio	83.2% (600–700 MPa)
Ultra-High-Strength Steel	2000 MPa Submarine-Grade Hot-Formed Steel (A/B Pillars)
Roof Crush Resistance	Approx. 20.2 tons
Front Suspension	Double Wishbone Independent Suspension
Rear Suspension	Double Wishbone Independent Suspension
Air Suspension	● Adaptive Air Suspension (150 mm Adjustable Travel)
CDC Continuous Damping	● CDC 500 Adjustments per Second
Suspension Adjustment Range (mm)	−45 ~ +105 (Total 150 mm)
Garage Mode Height (mm)	1850 (Clears 1.9 m Height Limit)
Standard Ground Clearance (mm)	228
Off-Road Mode Ground Clearance (mm)	333
Approach Angle (°)	Standard 30° / Off-Road 37.7°
Departure Angle (°)	Standard 30° / Off-Road 37°
Breakover Angle (°)	Standard 19° / Off-Road 27.3°
Max. Gradeability	100% (45°)
Min. Turning Radius (m)	5.2
Max. Wading Depth (mm)	900
Underbody Armor	● Skid Plates + Underbody Protection Panels
Weight Reduction Benefit	Full Aluminum Chassis ≈ 30% Lighter vs. Steel
Ride Comfort Improvement	50% (vs. Traditional Hardcore Off-Road)
BRAKES & WHEELS
Front Brakes	Ventilated Disc
Rear Brakes	Ventilated Disc
ABS Anti-lock Braking	●
EBD Electronic Brakeforce Distribution	●
ESP Electronic Stability Control	● (Bosch)
Front / Rear Tire Spec	265/65 R18
Optional Off-Road Tires	○ 35" All-Terrain Tires (Optional)
Wheel Material	Aluminum Alloy
Optional Wheels	20" Forged Alloy Wheels (Optional)
Spare Tire	● Full-Size Spare Tire
Tire Certification	ECE + GCC + ISO + DOT Quadruple Certification
Brembo Front 6-Piston Calipers	Optional
EXTERIOR
Front Fascia Style	Off-Road Bumper Split Design + Sub-Frame Structure
Grille	Off-Road Style Grille
Headlights	LED Matrix Headlights
Headlight Functions	Auto Leveling + Adaptive High/Low Beam (AHBC) + ADB
DRL Daytime Running Lights	● LED DRL (Compliant with R87)
Front Fog Lights	● LED Front Fog Lights
Tail Lights	Cross-Shaped "Sword Pointing Sky" Tail Lights
Rear Fog Light	● (Compliant with R38)
High-Mount Stop Lamp	● LED High-Mount Stop Lamp
Front Tow Hook	● 1 (with optional electric winch)
Rear Tow Hook	● 1
Electric Winch	12,500 lb Electric Winch (Optional)
Snorkel	○ Optional
Roof Rack	● (Off-Road Edition Standard)
Side Ladder	Optional
Fixed Side Steps	● All-Terrain Fixed Steps
Power Retractable Side Steps	Optional
Door Opening Style	Conventional Doors (5 doors)
Tailgate Opening Style	Side-Hinged Tailgate + Spare Tire Cover ("Small Bag")
Body-Colored Door Handles	●
Chrome Mirror Housings	● Electroplated Mirrors
Mirror Functions	Power Adjust + Heat + Fold + Position Memory
Front / Rear Differential Locks	● Front + Rear Electronically Controlled Mechanical Differential Locks
Center Differential Lock	● Center Lock
Intelligent E-Lock (3 Locks)	● MHERO Intelligent E-Lock 1-Second Locking
Tire Pressure Monitoring TPMS	●
Towing Capacity	● 2.5-ton Legal Towing Capacity
Wheel Design	20" 6-Spoke Dual-Blade Design (Off-Road Exclusive)
INTERIOR
Interior Style	Luxury Off-Road Nappa Leather Interior
Seat Material	Nappa Leather
Driver Seat Adjustment	12-Way Power Adjust (incl. Lumbar Support)
Driver Seat Functions	● Heat + Ventilation + Massage
Front Passenger Seat Adjustment	10-Way Power Adjust
Front Passenger Seat Functions	● Heat + Ventilation + Massage (Queen Passenger Zero-Gravity Seat)
2nd Row Seats	3-Seat 4/6 Split Fold
2nd Row Functions	● Heat + Ventilation + Massage
2nd Row Fold-Flat	● Flat-Fold into 2.1 m Bed
Steering Wheel Material	Leather Multi-Function Steering Wheel
Steering Wheel Functions	Shift Paddles + Heating
Gear Selector	Column-Mounted Electronic Shifter
Instrument Cluster	10.25" LCD Digital Cluster
Central Touchscreen	15.6" Floating Touchscreen
HUD Head-Up Display	○ W-HUD Augmented Reality HUD (Optional)
Ambient Lighting	● 256-Color Adjustable Ambient Lighting
ENC Active Noise Cancellation	● ENC Active Noise Cancellation
Wireless Phone Charging	● 50W Front-Row Wireless Charging
USB Ports	● Front: USB-A + USB-C
Rear USB / 220V	● Rear USB + 12V Power
Climate Control	Dual-Zone Auto A/C + Rear Vents
4-Zone A/C (GCC)	● 4-Zone Independent A/C (Gulf High-Temp Calibration)
Air Purification	● PM2.5 Filtration + Air Purifier (GCC Dust Protection)
Smart Cooler / Warmer	Optional
Sun Visors / Vanity Mirrors	● Dual Sun Visors (with Vanity Mirror + LED Lighting)
Windows	● 4-Door One-Touch Up/Down (Anti-Pinch)
Rearview Mirror	● Auto-Dimming + Integrated Dashcam Interface
INFOTAINMENT
Infotainment System	HUAWEI HarmonySpace 5 Cockpit
Smart Cockpit Chip	HUAWEI Kirin Cockpit Chip
Central Touchscreen Size	15.6" Floating Touchscreen
Instrument Cluster Size	10.25" LCD Digital Cluster
Voice Recognition	● 4-Zone Voice Recognition
Voice Assistant	● Custom Off-Road AI Navigator
HUAWEI HiCar	● HUAWEI HiCar 4.0
Apple CarPlay	●
Android Auto	●
In-Car KTV	●
Facial Recognition	●
Multi-Finger Screen Projection	● Multi-Finger Cross-Screen Control
App Store	● HUAWEI App Market
5G Network	● 5G In-Car Network
4G Network	● 4G LTE
OTA Updates	● Full-Vehicle OTA Online Updates
Bluetooth	● In-Car Bluetooth
Wi-Fi Hotspot	● Wi-Fi Hotspot
Mobile App Remote Control	● HUAWEI Star Flash Key + Mobile App
Dynaudio Sound System	○ Dynaudio 18-Speaker System (Optional)
Standard Speakers	● 8 Speakers
Number of USB Ports	Front × 2 + Rear × 1
Dashcam	● Built-in Dashcam
HUAWEI Qiankun Cloud	● HUAWEI Qiankun Cloud View + VHR Cloud Service
SAFETY & SECURITY
Driver / Passenger Airbags	● / ● (2 total)
Front Side Airbags	● 2
2nd Row Side Airbags	● 2 (Standard Across All Trims)
Side Curtain Airbags	● 2 (30-second Pressure Retention)
Total Airbag Count	6 (incl. side curtains)
Front Seatbelt Pretensioners / Load Limiters	● Pretensioner + Load Limiter
2nd Row Seatbelts	● 3-Point Full Seating
ISOFIX Child Seat Anchors	● ISOFIX + i-Size
TPMS Tire Pressure Monitoring	● Direct-Type TPMS
Speed-Sensitive Auto Lock	●
Collision Auto-Unlock	●
e-Call Emergency Call	● e-Call Emergency Call System
Door Anti-Intrusion Beams	● 4-Door Anti-Intrusion Steel Beams
High-Strength Cage Body	● 4-Longitudinal 10-Lateral Cage Structure
Roof Crush Resistance	20.2 tons
Underbody Armor Protection	● Skid Plates + Underbody Protection Panels
Engine Immobilizer	● Immobilizer
Remote Central Locking	● 2 Smart Keys
Keyless Entry	●
360° Panoramic Camera	● 360° Surround View + 180° Transparent Chassis
Intelligent Infrared Night Vision	Military-Grade 400 m Detection (Optional)
Full-Dimension Collision Avoidance CAS	● CAS 5.0 (Full Speed / Full Direction / Full Target / All Weather)
Built-in Dashcam	●
ADAS INTELLIGENT DRIVING ASSIST (HUAWEI QIANKUN ADS 4)
Intelligent Driving System	HUAWEI Qiankun ADS 4
ADAS Architecture	WEWA Architecture
LiDAR	● 1 (Image-Grade 896-Line Dual Optical Path)
HD Perception Cameras	● 11
Ultrasonic Radars	● 12
Millimeter-Wave Radars	● 3
Total Sensors	27
ACC Adaptive Cruise Control	● Full-Speed Adaptive Cruise
ICA Intelligent Cruise Assist	●
AEB Automatic Emergency Braking	● Incl. Road-Adaptive AEB
FCW Forward Collision Warning	●
LDW Lane Departure Warning	●
LKA Lane Keeping Assist	●
ELKA Emergency Lane Keeping	●
BSD Blind Spot Detection	●
DOW Door Open Warning	●
RCTA Rear Cross Traffic Alert	●
RCW Rear Collision Warning	●
TSR Traffic Sign Recognition	●
IHBC Intelligent High Beam	●
TLC Traffic Light Recognition	●
ADB Adaptive High Beam	Optional
Highway NCA Navigation Assist	● Highway NCA
Urban NCA Navigation Assist	● Urban NCA
Full-Scenario Smart Parking	● Full-Scenario Automatic Parking
Off-Road NCA	● Unpaved Road NCA (Industry First)
Narrow Road Obstacle Avoidance	● Narrow Road Auto-Slowdown + Intelligent Reverse Tracking
All-Terrain Recognition	● Intelligent All-Terrain Recognition
OFF-ROAD & ALL-TERRAIN
M-ATS Intelligent All-Terrain System	● M-ATS™ All-Terrain Intelligent System
All-Terrain Mode Count	9 (incl. AUTO / Expert Mode)
Deep Snow Mode	●
Snow Mode	●
Mud Mode	●
Rock Mode	●
Sand Mode	●
Wading Mode	●
Auto Mode	●
Expert Mode	● Custom Parameters (Triggered in Straight-Line Driving)
Intelligent E-Lock (3 Locks)	● MHERO Intelligent E-Lock 1-Second Locking
Front E-Mechanical Differential Lock	●
Rear E-Mechanical Differential Lock	●
Center Differential Lock	●
Low-Speed Off-Road Assist / Crawl	● Off-Road Crawl Mode (incl. Stable Climbing Assist)
Tank Turn	● Min. Turning Radius 3.5 m
Rear-Wheel Steering Angle	● ±10° Bi-Directional Rear-Wheel Steering
Crab Walk Mode	● 10° Crab Walk Mode
Intelligent Wading Sensor System	● Wading Sensor (Real-Time Water Depth Display)
VMC Intelligent Chassis Domain Control	● Longitudinal / Lateral / Vertical 3-Axis Coordinated Control
6D IMU Body Attitude Sensing	● 6D Inertial Measurement Unit
Max. Wading Depth (mm)	900 (up to 1200 mm with optional snorkel)
Max. Gradeability	100% (45°)
Min. Turning Radius (m)	5.2 (rear-wheel steering activated)

Vehicle overview

MHERO II (M817) E0 GCC Off-Road Edition

Dongfeng MHERO Technology · PHEV · Intelligent AWD · LHD · GCC Middle East

Full configuration

Grouped specifications

Vehicle specifications

Build your export quotation
