| Basic Information |
| Model Name |

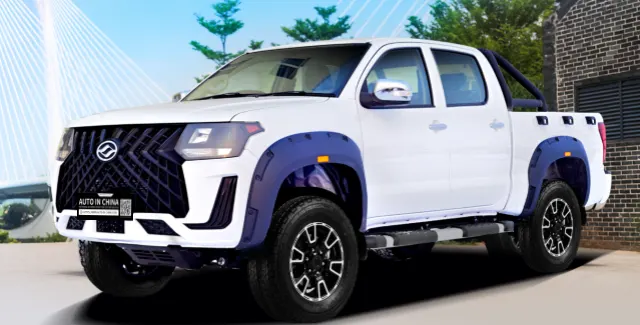

Huanghai N2S Sport 2WD (LHD) |
| Announcement Model |
DD1032HC / DD1032B |
| Manufacturer |
SG Automotive (Huanghai) |
| Vehicle Type |
Pickup Truck (Double Cab, 4 doors, 5 seats) |
| Body Style |
4-door, 5-seat, Double Cab Pickup |
| Drivetrain |
4×2 Rear-Wheel Drive (RWD) |
| Dimensions L×W×H (mm) |
5560×1840×1850 |
| Wheelbase (mm) |
3405 |
| Front/Rear Track (mm) |
1548 / 1548 |
| Front/Rear Overhang (mm) |
895 / 1260 |
| Approach/Departure Angle (°) |
32 / 26 |
| Min. Ground Clearance (mm) |
215 |
| Curb Weight (kg) |
1810 (Std) / 1870 (Heavy-Duty) |
| Max GVW (kg) |
2625–2885 (Std) / 3445 (Heavy-Duty) |
| Payload (kg) |
750 (Std) / 1200 (Heavy-Duty) |
| Fuel Tank Capacity (L) |
70 |
| Max Speed (km/h) |
160 |
| Seating Capacity |
5 (2+3) |
| Body Structure |
Body-on-Frame (Ladder Chassis) |
| Steering Position |
Left-Hand Drive (LHD) |
| Fuel Type |
Gasoline (Petrol) |
| Recommended Fuel |
Unleaded Gasoline ≥92 Octane |
| Emission Standard |
China VI-B / Equivalent Euro V |
| Engine & Powertrain |
| Engine Model |
Mitsubishi 4K22D4T (Aerospace Mitsubishi) |
| Engine Type |
Inline 4-Cylinder, Turbocharged, DOHC |
| Displacement (L/cc) |
2.4L / 2378 cc |
| Aspiration |
Turbocharged |
| Fuel System |
Multi-Point Injection (MPI) |
| Max Power (kW/hp) |
160 kW / 218 hp |
| Max Power RPM |
5600 |
| Max Torque (Nm) |
320 |
| Max Torque RPM |
2000–4000 |
| Compression Ratio |
9.6:1 (Turbocharged) |
| Cylinder Head Material |
Aluminum Alloy |
| Cylinder Block Material |
Cast Iron |
| Emission Standard |
China VI-B (Equivalent Euro V) |
| Transmission |
6-Speed Manual (6MT) |
| Clutch Type |
Manual, Single-Plate Dry Clutch |
| Drivetrain |
Rear-Wheel Drive (RWD) |
| Chassis & Suspension |
| Body Structure |
Body-on-Frame (Ladder Chassis) |
| Front Suspension |
Double Wishbone Independent |
| Rear Suspension |
Leaf Spring, Solid Axle (Non-Independent) |
| Rear Axle |
Solid Rear Axle |
| Rear Differential Lock |
— (Not equipped on 2WD) |
| Steering System |
Hydraulic Power Steering (HPS) |
| Turning Radius (m) |
≈6.5 (estimated) |
| Wading Depth (mm) |
≈500 (tested) |
| Ramp Breakover Angle (°) |
≈20 (estimated) |
| Brakes & Wheels |
| Front Brakes |
Ventilated Disc |
| Rear Brakes |
Drum |
| Parking Brake |
Manual Handbrake |
| ABS Anti-lock Braking |
● Standard |
| EBD Electronic Brake Distribution |
● Standard |
| Traction Control (TCS) |
— Not equipped |
| ESP Electronic Stability Control |
— Optional |
| Wheel Size |
17" Alloy Wheels |
| Tire Specification (F/R) |
265/65 R17 |
| Spare Tire |
Full-size Spare (Underbody Mounted) |
| Tire Certification |
ECE / GCC / ISO / DOT Certified |
| Cargo Bed |
| Bed Type |
Flatbed with Side Rails |
| Bed Dimensions L×W×H (mm) |
1815×1520×515 |
| Bed Volume (m³, est.) |
≈1.42 m³ |
| Spray-on Bed Liner |
● Spray-on Bedliner |
| Bed Tie-Down Hooks |
● Inner & Outer Tie-Down Hooks |
| Bed Side Rails |
● Steel Side Rails |
| Payload (kg) |
750 (Std) / 1200 (Heavy-Duty) |
| Roll Bar |
● Cab-Protection Roll Bar |
| Exterior Features |
| Low-Beam Headlight |
● Halogen |
| High-Beam Headlight |
● Halogen |
| LED Daytime Running Lights (DRL) |
● Standard |
| Front Fog Lights |
● Standard |
| Headlight Leveling |
● Electronically Adjustable |
| Body-Color Door Handles |
● Standard |
| Chrome Mirror Covers |
— Not equipped (Sport 2WD) |
| Power-Adjustable Side Mirrors |
● With Turn Signal Indicators |
| Side Steps (Both Sides) |
● Standard |
| Rear Bumper Step |
● Standard |
| Engine Underbody Guard |
● Standard |
| Front/Rear Mudguards |
● Standard |
| Rear Privacy Glass |
— Standard on Supreme trim only |
| Sport Appearance Package |
— Base Sport trim |
| Metallic Paint |
● Standard |
| Available Colors |
● White / Black / Silver / Red / Blue / Khaki |
| Interior Features |
| Interior Theme |
Two-Tone Luxury Interior |
| Seat Material |
Premium Fabric Seats (Sport 2WD) |
| Driver Seat Adjustment |
● 6-Way Manual Adjustment |
| Passenger Seat Adjustment |
● 4-Way Manual Adjustment |
| Rear Seat |
60/40 Split-Folding (Bench) |
| Rear Center Armrest + Cup Holder |
● Standard |
| Steering Wheel Material |
Plastic Steering Wheel (Sport 2WD) |
| Steering Wheel Adjustment |
● Manual Tilt Adjustment |
| Multi-Function Steering Wheel |
● Audio + Cruise Control |
| Sun Visor Vanity Mirror |
● Driver + Passenger |
| Overhead Console |
● Sunglasses Case + Front Reading Lights |
| Cigarette Lighter / Ashtray |
● Cylindrical Ashtray |
| 12V Power Outlet |
● Front Cabin |
| USB Port |
● Front (Charging) |
| Air Conditioning |
● Manual A/C (Eco-Friendly) |
| Rear Window Defogger |
● Standard |
| Door Panel Trim |
PVC |
| Floor Mat |
● Carpet Floor Mats |
| Infotainment System |
| Instrument Cluster |
● Digital Trip Computer + Digital Clock |
| Center Display |
● MP5 Color Touchscreen |
| Screen Size |
● ≈8" (estimated) |
| GPS / BeiDou Navigation |
● Standard |
| Dash Cam |
● GPS / BeiDou Integrated Dash Cam |
| Number of Speakers |
2 (Sport 2WD) |
| AM/FM Radio |
● Standard |
| USB Music Playback |
● Standard |
| Bluetooth / Hands-Free Calling |
● Standard |
| Safety & Security |
| Driver Airbag |
— Not equipped (Sport 2WD) |
| Passenger Airbag |
— Not equipped (Sport 2WD) |
| Seatbelt Reminder (D/P) |
● / |
| 5 Three-Point Seatbelts |
● Standard |
| Rear Center Three-Point Seatbelt |
● Standard |
| Rear Door Child Safety Locks |
● Standard |
| ABS + EBD |
● / |
| TPMS Tire Pressure Monitoring |
— Not equipped (Sport 2WD) |
| Seatbelt Pretensioners |
● Front (Load-Limiting) |
| Door Reinforcement Beams |
● (All 4 Doors) |
| High-Mount LED Brake Light |
● Standard |
| Rear Parking Sensors |
○ Optional |
| Rearview Camera |
● Rear Camera |
| Speed-Sensing Auto Door Lock |
● Standard |
| Collision Auto Unlock |
● Standard |
| Engine Immobilizer |
● Standard |
| Remote Central Locking |
● Standard |
| Remote Key (Folding, 1 key) |
● Standard |
| Anti-Theft Alarm |
○ Optional |
| Collapsible Steering Column |
● Energy-Absorbing |
| Front Crash Energy Absorption Zone |
● Energy-Absorbing Frame |
| Driver Assistance |
| Cruise Control |
— Not equipped (Sport 2WD) |
| Lane Departure Warning (LDW) |
— Not equipped |
| Automatic Emergency Braking (AEB) |
— Not equipped |
| Blind Spot Detection (BSD) |
— Not equipped |
| Drive Mode Select |
— 2WD Only, No 4WD Mode |
| Hill Start Assist (HSA) |
— Not equipped |
| Hill Descent Control (HDC) |
— Not equipped |
| GCC Compliance & Certification |
| GCC Conformity Assessment |
● GCC Standard (GSO) |
| ECE Tire Certification |
● ECE Certified Tires |
| GCC Tire Marking |
● GCC Compliant |
| DOT Tire Certification |
● Standard |
| ISO Vehicle Certification |
● Standard |
| Front Underrun Protection (FUP) |
● GCC Mandatory Protection |
| Rear Underrun Protection (RUP) |
● Standard |
| Side Underrun Protection (SUP) |
● Standard |
| High-Mount LED Brake Light |
● GCC Mandatory |
| Reflective Markings (F/R/Side) |
● Amber + Red + White |
| Dual-Tone Horn |
● GCC Sound Level Compliant |
| Headlight Alignment (LHD) |
● LHD Beam Pattern |
| Sun Visor (D/P) |
● GCC Heat-Resistant Type |
| A/C Performance (Extreme Heat) |
● Passed GCC High-Temp Test (−28°C to +42°C) |
| Dust-Proof Sealing Kit |
● GCC-Spec Door Seals |
| Emission Equivalence |
Euro V (China VI-B Equivalent) |
