| Item |
Specification |
| Basic Parameters |
| Model Name |

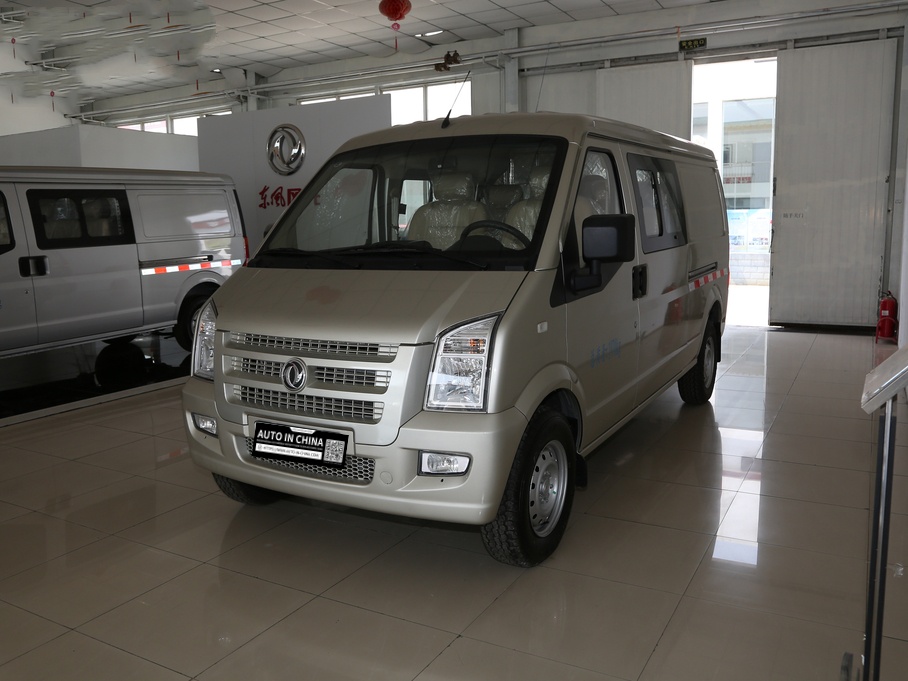

DFSK C35 Micro Van (Panel Van / Cargo Van) |
| Model Code |
DXK5024XXYK1H9 / DXK5026XXYF |
| Vehicle Category |
Micro Van / Small Van (Commercial) |
| Body Style |
5-door Cargo Van (2-seat or 5-seat Optional) |
| Drive Type |
Mid-Engine Rear-Wheel Drive (4×2) |
| Steering Position |
LHD (Standard GCC Left-Hand Drive) |
| L×W×H (mm) |
4500 × 1680 × 1960–2000 |
| Wheelbase (mm) |
3050 |
| Front / Rear Track (mm) |
1435 / 1435–1490 |
| Front / Rear Overhang (mm) |
570 / 880 |
| Min. Ground Clearance (mm) |
★ 190 |
| Min. Turning Radius (m) |
≈ 8.3–10.5 |
| Approach / Departure Angle (°) |
★ 36° / ★ 11° |
| Curb Weight (kg) |
1285–1290 |
| Gross Vehicle Mass GVM (kg) |
1970–2145 |
| Rated Payload (kg) |
495–800 (Depending on Seating) |
| Cargo Volume (m³) |
2.55–5.1 (Panel Van Single-Row = 6.1 m³) |
| Cargo Interior Dimensions (mm) |
2480–2630 × 1470–1480 × 1280–1300 |
| Fuel Tank Capacity (L) |
55 |
| Max. Speed (km/h) |
100–140 (Market Dependent) |
| Seating Capacity |
2 (Cargo Only) / 5 (Crew Bus) |
| Driver's License Requirement |
C1 / A1 / A2 / B1 / B2 All Applicable |
| Engine & Powertrain |
| Engine Model |
DK15C / DK15-09 (1.5L Naturally Aspirated) |
| Optional Engine Model |
DK 1.5 DWT (Overseas: 100 PS / 136 N·m) |
| Engine Layout |
Mid-Mounted, Longitudinal |
| Cylinder Layout |
Inline 4-Cylinder (L4) |
| Displacement (mL) |
1498–1499 cc (1.5L) |
| Induction Type |
Naturally Aspirated |
| Fuel Supply |
Multi-Point EFI |
| Valvetrain |
DOHC (DVVT = Dual Variable Valve Timing) |
| Max. Power |
82 kW / 112 PS @ 6000 rpm (DK15C) |
| Max. Power (DVVT Version) |
74–85 kW / 100–115 PS |
| Max. Torque |
145 N·m (DK15C) / 148 N·m (DK15-09) |
| Max. Torque (DVVT Version) |
136 N·m @ 4000 rpm |
| Fuel Type |
Gasoline (RON 92+) / Optional CNG Bi-Fuel |
| CNG Version Power |
72 kW / 98 PS (DK15NC) |
| Compression Ratio |
★ 10.5:1 |
| Emission Standard |
China VI-B (Equivalent Euro IV–V) |
| Transmission |
5-Speed Manual (5MT) |
| Shift Type |
Manual |
| Number of Gears |
5 Forward + 1 Reverse |
| Gearbox Model (Overseas) |
MR15 (5-Speed Manual) |
| Gear Ratios (Overseas) |
1st 3.999 / 2nd 2.172 / 3rd 1.434 / 4th 1.000 / 5th 0.856 / Rev 4.452 |
| Chassis & Suspension |
| Body Structure |
Load-Bearing Monocoque Body |
| Frame Structure |
8 Reinforcement Cross Members + 80mm Widened Longitudinal Beams (3rd-Gen Chassis) |
| Front Suspension |
MacPherson Independent Suspension |
| Rear Suspension |
5-Leaf Spring Non-Independent Suspension |
| Rear Suspension (Crew Bus) |
Multi-Link Non-Independent (Comfort-Oriented) |
| Steering Type |
EPS Electric Power Steering |
| Steering Mechanism |
Rack and Pinion |
| Clutch Type |
Mechanical Clutch |
| Max. Gradeability |
30% (★ 16.7°) |
| Wading Depth |
★ 400 mm (Commercial Van Standard) |
| Brakes & Wheels |
| Front Brake |
Solid Disc Brake |
| Rear Brake |
Drum Brake |
| Braking System |
Dual-Circuit Hydraulic |
| ABS Anti-lock System |
● |
| EBD Electronic Brakeforce Distribution |
● |
| ABS Controller Model |
WX80 (Zhejiang Wanxiang Precision) |
| Parking Brake |
Handbrake (Mechanical) |
| Tire Size |
175/80 R14 or 185/80 R14 |
| Tire Type |
8PR Reinforced Commercial Tire (LT Light-Truck Grade) |
| Wheel |
14-inch Silver Steel Wheel + Wheel Cover |
| Lug Nuts |
Galvanized Anti-Rust Nuts |
| Spare Tire |
● Full-size Spare Tire (Steel Wheel) |
| Tire Certification |
ECE / GCC / ISO / DOT |
| Cargo Area |
| Cargo Type |
Fully Enclosed Box Body (Fixed Roof) |
| Cargo Interior Length (mm) |
2480 (Crew Bus) / 2630 (Panel Van) |
| Cargo Interior Width (mm) |
1470–1480 |
| Cargo Interior Height (mm) |
1280–1300 |
| Cargo Volume (m³) |
★ 5.1 (Panel Van, 2-Seat) |
| Cargo Volume (Crew Bus) |
★ 2.55 (5-Seat) |
| Cargo Body Material |
Steel Enclosed Box + Anti-Rust Inner Coating |
| Cargo Floor |
Anti-Slip Steel Plate + Wear-Resistant Coating |
| Cargo Guardrail |
Stainless Steel Curved Guardrail (Cargo Protection) |
| Interior Tie Hooks |
● (Multiple Anchor Points) |
| Rear Seat Fold |
● Rear Backrest Foldable as a Whole (Expands Cargo Space) |
| Tailgate Type |
● Top-Hinged Liftgate (Upward Opening) |
| Side Door Type |
● Dual Sliding Doors (Both Sides) |
| Rated Payload |
★ 800 kg (Panel Van) / 495 kg (Crew Bus) |
| Reflective Markings |
● (Zhejiang Longyou Daoming Optics DMCT1800) |
| Exterior |
| Headlights |
Halogen Headlights + Height Adjustable |
| Automatic Headlights |
○ Standard in Some Overseas Markets |
| LED DRL (Daytime Running Lights) |
○ Partial Standard on GCC Version |
| Front Fog Lights |
○ Partial Standard in Some Overseas Markets |
| Rear Fog Light |
● (EU / ECE Mandatory) |
| High-Mount Stop Lamp |
● (LED High-Mount Brake Light) |
| Tail Light Assembly |
Halogen Tail Lights + Reflector Strips |
| Front Grille |
Black Horizontal Bar Grille (New Grille Optional on 3rd-Gen Chassis) |
| Front / Rear Bumper |
Black Plastic Bumper (Commercial Durability) |
| Door Handles |
Black Plastic (Body-Color Optional) |
| Side Mirrors |
Manual Adjustment (Electric ○ Optional) |
| Front Wiper |
Manual Wipers (No Intermittent) |
| Rear Wiper |
— |
| Windows |
Front Power Windows / Rear Side Panels Closed |
| Body Colors |
Diamond Silver / Elegant White / Crystal Gold / Moonlight Blue / Silver Gray (5 Colors) |
| Interior |
| Interior Theme |
All-Black |
| Seat Material |
Fabric / ○ Optional Leatherette |
| Driver Seat Adjustment |
4-way Manual (Fore/Aft + Recline) |
| Passenger Seat Adjustment |
4-way Manual |
| Rear Seats |
Foldable as a Whole (Expands Cargo Space) |
| Steering Wheel |
3-Spoke Plastic Steering Wheel |
| Multi-function Steering Wheel |
— |
| Steering Wheel Material |
PVC Plastic |
| Instrument Cluster |
Analog Dials + LCD Trip Computer |
| Center Console |
Simple Utility Type (Black Plastic + Silver Trim) |
| Air Conditioning |
Manual A/C |
| A/C (Overseas Optional) |
○ Automatic A/C Optional (Some Markets) |
| Power Windows (Front) |
● |
| Central Locking |
○ (Remote Central Locking) |
| Remote Key |
○ |
| Interior Lights |
○ Dome Light + Reading Light |
| Cigarette Lighter / 12V Power |
● |
| USB Port |
○ AUX / USB / iPod External Audio |
| Glove Box |
○ Damped Glove Box |
| Sun Visor |
● Driver + Passenger (with Vanity Mirror) |
| Rearview Mirror |
Manual Anti-Glare |
| Infotainment |
| Audio System |
AM/FM Radio (Base Model) |
| External Audio Input |
USB / AUX / iPod Optional |
| Number of Speakers |
2 (One per Front Door) |
| Center Display |
— Base Model No Screen / ○ Touchscreen Optional |
| Bluetooth Phone |
○ |
| GPS Navigation |
○ (Some Overseas Markets) |
| Trip Computer |
● (Fuel Consumption / Mileage / Speed) |
| Voice Recognition |
— |
| Smartphone Integration |
— |
| Safety & Security |
| Driver Airbag |
— Base Model / ○ Optional on CNG Super-Luxury Trim |
| Passenger Airbag |
— |
| Front Side Airbags |
— |
| Side Curtain Airbags |
— |
| ABS Anti-lock Braking |
● |
| EBD Electronic Brakeforce Distribution |
● |
| Brake Assist (BA/EBA) |
— |
| TCS / ASR Traction Control |
— |
| ESP / DSC Electronic Stability Control |
— Base / ○ Optional in Some Overseas Markets |
| Seat Belt Reminder |
● Driver Standard |
| Front 3-Point Seat Belts |
● |
| Rear 3-Point Seat Belts |
● (5-Seat Version) |
| Pretensioner Seat Belts |
— |
| ISOFIX Child Seat Anchors |
— |
| Door Anti-Collision Beams |
● |
| Front Crash Beam |
★ Thickened Crash Beam (80mm Widened Longitudinal Beam) |
| Engine Immobilizer |
○ (Remote Central Locking with Anti-Theft) |
| Remote Central Locking |
○ |
| Rear Parking Radar |
○ |
| Rear View Camera |
○ (CNG Super-Luxury + 360° Surround Standard) |
| 360° Surround View Camera |
○ (CNG Super-Luxury Trim) |
| High-Mount Stop Lamp |
● (LED) |
| Reflective Markings |
● (DMCT1800 Diamond Reflective) |
| Cab Partition |
● Reinforced Panel Partition Behind Rear Seats |
| GCC Compliance & Certification |
| GCC Certification |
● GSO Conformity Assessment (Target: KSA / UAE / Kuwait / Qatar / Bahrain / Oman) |
| Emission Regulation |
China VI-B / Equivalent Euro IV–V (Market Dependent) |
| Front Underrun Protection (FUP) |
● Compliant with ECE R93 |
| Rear Underrun Protection (RUP) |
● Compliant with ECE R58 |
| Side Underrun Protection (SUP) |
● Compliant with ECE R73 |
| DRL Daytime Running Lights |
● Compliant with ECE R87 |
| Rear Fog Light |
● Compliant with ECE R38 (Mandatory Standard) |
| ABS Anti-lock |
● Compliant with ECE R13 |
| Seat Belt Reminder |
● Compliant with ECE R16 |
| Audible Warning Device (Horn) |
● Dual-Tone Horn (GCC Sound Level Compliant) |
| Headlight Low-Beam Pattern |
LHD Left-Traffic Beam Pattern (GCC Calibration) |
| High-Temperature A/C Test |
★ Passed GCC High-Temp Test (−28°C to +42°C) |
| Dust Protection |
● Critical Seals Reinforced (Sand Environment) |
| Chassis Anti-Rust |
● Chassis Anti-Rust Coating + Galvanized Nuts + Stainless Steel Exhaust |
| Tire Certification |
ECE / GCC / ISO / DOT (Quadruple Certified) |
| Reflective Marking Certification |
● Zhejiang Daoming Optics DM Brand (ECE Certified) |
| On-Board Diagnostics (OBD) |
● China VI OBD-II (GCC Emission Monitoring Compliant) |
| ETC On-Board Unit |
○ |
| Legend: ● = Standard — = Not Equipped ○ = Optional ★ = Key Highlight |
