| Item |
Specification |
| Basic Parameters |
| Model Name |

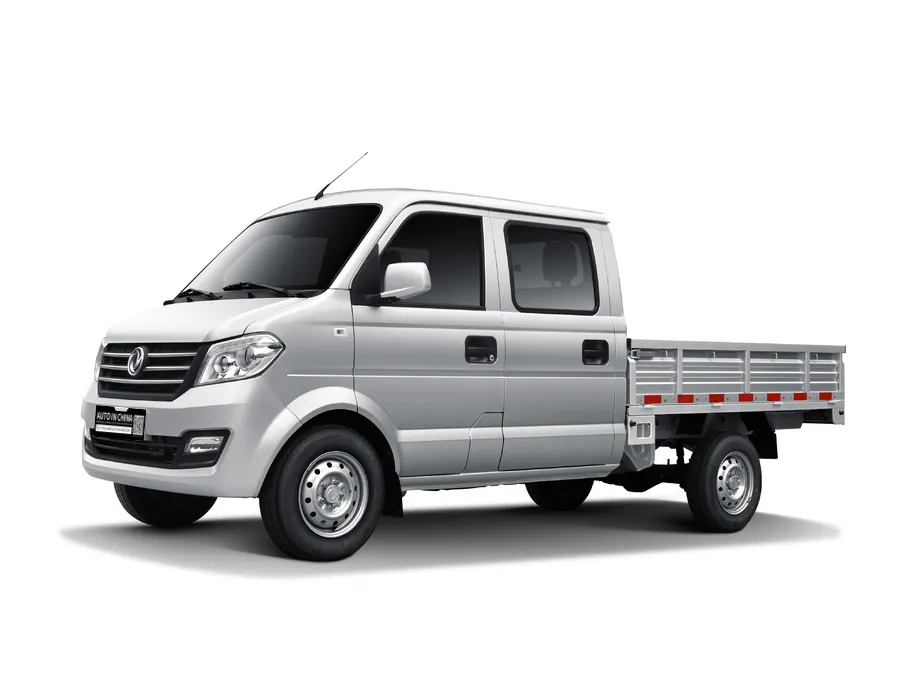

DFSK C32 Double-Cab Mini Truck |
| Model Code |
DXK1022TK (China VI) |
| Vehicle Type |
Light Cargo Truck / Mini Truck |
| Body Style |
4-door · Double-Row Cab · Drop-Side Cargo Bed |
| Drive Type |
Mid-Engine Rear-Wheel Drive (4×2, Mid-Engine RWD) |
| Seating Capacity (persons) |
5 |
| Emission Standard |
China VI-B / Equivalent Euro 6 |
| GCC / GSO Certification |
● Certified (Gulf Cooperation Council) |
| Overall Dimensions L×W×H (mm) |
4940 × 1655 × 1910 |
| Wheelbase (mm) |
3050 |
| Front / Rear Track (mm) |
1410 / 1410 |
| Min. Ground Clearance (mm) |
185 |
| Curb Weight (kg) |
1130–1200 |
| Gross Vehicle Weight (kg) |
2315 |
| Rated Payload (kg) |
745–1010 |
| Fuel Tank Capacity (L) |
50 / 55 (Optional) |
| Max. Speed (km/h) |
120 |
| Combined Fuel Consumption (L/100km) |
6.7 |
| Engine & Powertrain |
| Engine Model (Option 1) |
SFG16 (1.6L, China VI) |
| Engine Model (Option 2) |
DK15 (1.5L, China VI) |
| Engine Type |
Inline 4-cylinder · 4-stroke · Water-cooled · EFI · Naturally Aspirated |
| Combustion Cycle |
EGR + Mild Atkinson Cycle (SFG16) |
| Displacement (mL) |
1597 (SFG16) / 1499 (DK15) |
| Max. Power (kW) |
90 (SFG16) / 82 (DK15) |
| Max. Power (HP) |
122 PS (SFG16) / 112 PS (DK15) |
| Max. Torque (N·m) |
158 (SFG16) / 147.5 (DK15) |
| Fuel Type |
Gasoline (RON 92 or above) |
| Fuel Supply |
Multi-Point EFI / Delphi MT22.1 ECU |
| Cylinder Head / Block Material |
Aluminum Alloy Head / Cast Iron Block |
| Transmission |
5-Speed Manual (5MT) |
| Drive Layout |
Mid-Engine, Rear-Wheel Drive |
| Steering Type |
EPS Electric Power Steering |
| Chassis & Suspension |
| Body Structure |
Semi-Load-Bearing with Reinforced Longitudinal Beams |
| Front Suspension |
MacPherson Independent Suspension |
| Rear Suspension |
6-Leaf Spring Non-Independent Suspension (Top-Mounted) |
| Leaf Spring Count |
6 leaves |
| Leaf Spring Thickness (mm) |
59.5 |
| Reinforcement Cross Members |
8 (High-Load Area) |
| Frame Type |
Ladder-Type Reinforced Frame (700 MPa High-Strength Steel) |
| Fatigue Test |
Passed 700,000-cycle Bench Fatigue Test |
| Load Capacity Improvement |
30% improvement over previous generation |
| Brakes & Wheels |
| Braking System |
Front Disc / Rear Drum · Dual-Circuit Hydraulic |
| Vacuum Booster |
7+8 Dual-Diaphragm Vacuum Booster |
| ABS Anti-lock Braking |
● |
| EBD Electronic Brakeforce Distribution |
● |
| TCS Traction Control |
○ |
| ESP Electronic Stability Control |
○ (High Trim) |
| Parking Brake |
Handbrake (Mechanical) |
| Tire Size |
175R14 / 185R14LT (8PR Reinforced) |
| Wheel Type |
Steel Wheel (Alloy Optional) |
| Spare Tire |
● Full-size Spare Tire |
| Tire Certification |
ECE / GCC / ISO / DOT |
| Cargo Bed |
| Cargo Bed Type |
Conjoined Drop-Side Cargo Box |
| Cargo Bed Dimensions L×W×H (mm) |
2260 × 1540 × 370 |
| Rated Payload (kg) |
745–800 |
| Cargo Floor |
Thickened Anti-Slip Steel Plate |
| Cargo Bed Protection |
Spray-On Bedliner / Anti-Rust Coating |
| Cargo Bed Guardrail |
● |
| Tie-Down Anchor Points |
● (Multiple Anchors) |
| Tailgate Type |
Full-Open Downward-Folding Tailgate |
| Tailgate Opening Angle |
180° |
| Rear Seat Back Fold |
● Foldable (Extends Cargo Length) |
| Side Panel Height (mm) |
370 |
| Exterior |
| Body Color |
Polar White / Crystal Silver (2 Standard Colors) |
| Headlights |
Halogen Headlights (Manually Adjustable Height) |
| Front Fog Lights |
● |
| Daytime Running Lights (DRL) |
● |
| Rear Tail Lights |
Halogen Tail Lights + Rear Fog Light |
| Front Grille |
Body-Color Front Grille |
| Front / Rear Bumper |
Body-Color Bumper |
| Side Mirrors |
Manual Adjustment · Manual Folding |
| Electric Mirrors |
○ |
| Front Power Windows |
● |
| Rear Door Opening |
Swing-Out Doors (Rear Row) |
| Windshield Wipers |
Manual Wipers (2-speed) |
| Front Mudguard |
● |
| Rear Mudguard |
● |
| Steel Wheel Cover |
● |
| Alloy Wheels |
○ |
| Interior |
| Interior Style |
Gray Interior (Utility Type) |
| Seat Material |
Thickened Fabric Seats |
| Seating Layout |
Front 2 + Rear 3 (5-Seat) |
| Rear Legroom (mm) |
≈ 850 |
| Seat Adjustment |
Driver 4-way Manual / Passenger 4-way Manual |
| Steering Wheel |
2-Spoke Plastic Steering Wheel |
| Multi-function Steering Wheel |
○ Optional |
| Steering Wheel Adjustment |
Tilt Adjustable |
| Instrument Cluster |
Digital Electronic Combination Meter |
| Sun Visor |
Driver + Passenger Sun Visor |
| Cigarette Lighter / 12V Power |
● |
| Ashtray |
● |
| Air Conditioning |
Single-Evaporator Manual A/C |
| A/C Filter |
PM2.5 Filtration |
| Storage Compartments |
Multiple Storage Spaces (Including Tool Compartment — 16 locations) |
| Cab Headrest Height |
≥ 1030 mm |
| Infotainment |
| Center Display |
○ 7-inch Floating Touchscreen (Optional) |
| Radio |
● Electronically Tuned Radio (Standard) |
| Bluetooth |
○ Optional (with Touchscreen) |
| USB Port |
● Standard (1 Front) |
| Number of Speakers |
2 |
| Rear Parking Radar |
○ Optional |
| Rear View Camera |
○ Optional (with Touchscreen) |
| Smartphone Integration |
○ Optional (CarPlay / Android Auto) |
| Safety & Security |
| ABS Anti-lock Braking System |
● |
| EBD Electronic Brakeforce Distribution |
● |
| TCS Traction Control |
○ |
| ESP Electronic Stability Control |
○ |
| Driver Airbag |
— (Not equipped on base mini-truck) |
| Passenger Airbag |
— |
| Front Side Airbags |
— |
| Seat Belt Reminder |
● Driver Seat Belt Reminder |
| Pretensioner Seat Belts |
● Front Seats |
| Rear 3-Point Seat Belts |
● |
| Door Anti-Collision Beams |
● |
| Collapsible Steering Column |
● |
| High-Mount Stop Lamp |
● |
| Rear Parking Radar |
○ |
| Rear View Camera |
○ |
| Central Locking |
● (Remote Key) |
| Remote Key |
● |
| Engine Immobilizer |
● |
| Speed-Sensing Auto Lock |
○ |
| Driving Aids |
| Cruise Control |
— |
| Hill Hold Control (HHC) |
○ |
| Hill Descent Control (HDC) |
— |
| Drive Mode Select |
— |
| EPS Electric Power Steering |
● |
| GCC Compliance & Certification |
| GSO Conformity Assessment |
● Certified by GCC Standardization Organization |
| Emission Regulation |
Euro 6 / China VI-B |
| Lateral Protection (FUP/RUP) |
● Compliant with GCC Regulations |
| GCC High-Temperature A/C Test |
● Passed (+45°C Ambient) |
| Dust Protection |
● Enlarged Air Filter · Thickened Seals (Sand Environment) |
| Left-Hand Drive (LHD) |
● Standard LHD Configuration |
| Headlight Beam Pattern |
LHD Left-Side Beam Calibration |
| Dual-Tone Horn |
● Sound Level Compliant with GCC Regulations |
| Rear Fog Light |
● (GCC Mandatory) |
| Daytime Running Lights (DRL) |
● (GCC Mandatory) |
| Door Anti-Pinch |
— |
| Seat Belt Reminder (All Seats) |
● Driver Standard |
| Legend: ● = Standard — = Not Equipped ○ = Optional ★ = Key Highlight |
