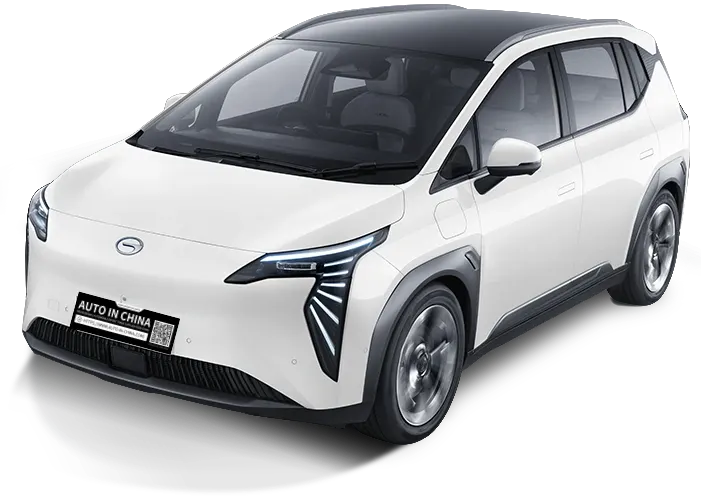

AION Y Plus 410 EU Whole Vehicle Type Approval (WVTA)

Complete source tables retained. Scroll across for multi-edition tables; confirm the exact edition with your quotation.

Item / Specification	AION Y Plus 410 — European Version (WVTA Reference)
BASIC INFORMATION
Model Designation	AION Y Plus 410 (Exclusive / Premium trim)
Vehicle Type	Battery Electric Vehicle (BEV), Compact SUV / Crossover
Body Style	5-door, 5-seat SUV
Length × Width × Height (mm)	4535 × 1870 × 1650
Wheelbase (mm)	2750
Front / Rear Track (mm)	1600 / 1600
Front / Rear Overhang (mm)	898 / 887
Min. Ground Clearance (mm, full load)	150
Turning Radius / Turning Circle (m)	5.5 / 11.0 m diameter
Approach / Departure Angle (°)	18 / 27
Kerb Weight (kg)	1670
Gross Vehicle Weight (kg)	2180
Max. Roof Load (kg)	75
Trunk Volume (L)	405 – 1200 (40/60 split-fold)
Drive Type	FWD (Front-Wheel Drive)
Number of Doors / Seats	5 / 5
Euro Class / Energy Label	Zero-emission BEV (A1 VES band)
PERFORMANCE
Motor Type	Permanent Magnet Synchronous Motor (PMSM)
Motor Model / Code	TZ184XYA2002
Max. Power (kW / hp)	150 kW / 204 hp (EU rating 136 hp variant also available)
Max. Torque (Nm)	225
Top Speed (km/h)	150 (EU limited)
Acceleration 0–100 km/h (s)	8.5
Max. Motor Speed (rpm)	14,000
Transmission	1-speed automatic, single-speed reduction gear
Gears	1 (automatic)
Drivetrain Layout	Front motor, front-wheel drive
Steering System	Electric Power Steering (EPS), rack and pinion
BATTERY & RANGE
Battery Technology	Magazine Battery (LFP – Lithium Iron Phosphate)
Battery Chemistry	LiFePO4 (Lithium Iron Phosphate)
Battery Capacity – Gross (kWh)	50.66
Battery Voltage (V)	374.4 (system ~400 V)
Battery Location	Below floor, under-floor enclosure
Range – NEDC (km)	410
Range – WLTP Combined (km, est.)	310 – 330 (EU type-approval pending confirmation)
Range – WLTP City (km, est.)	≈ 430 (city-biased)
Energy Consumption – WLTP (kWh/100km)	≈ 16.5 – 17.5 (est.)
CO₂ Emissions (g/km)	0 (BEV)
Battery Low-Temperature Heating	●
CHARGING
Charging Interface – AC	Type 2 (Mennekes, European standard)
Charging Interface – DC	CCS2 (Combined Charging System)
On-Board AC Charger (max.)	7 kW (single-phase) / 11 kW (3-phase capable)
AC 0–100% Charging Time (7 kW)	≈ 7.5 h
AC 0–100% Charging Time (11 kW)	≈ 5 h (est.)
DC Max. Fast Charging Power (kW)	80 – 90 kW
DC 20–80% Charging Time	≈ 40 min
DC 10–80% Charging Time (est.)	≈ 45 min
DC Quick-Charge Time (80 kW, 10→80%)	≈ 45 min
V2L (Vehicle-to-Load)	— (not available on 410 trim)
Charging Cable	Type 2 cable included
CHASSIS & BRAKES
Front Suspension	MacPherson Independent (coil spring + anti-roll bar)
Rear Suspension	Torsion Beam Semi-independent (coil spring)
Front Brakes	Ventilated disc
Rear Brakes	Solid disc
ABS (Anti-lock Braking System)	●
EBD (Electronic Brake Force Distribution)	●
ESP (Electronic Stability Program)	●
VDC (Vehicle Dynamics Control)	●
TCS (Traction Control System)	●
HHC (Hill Start Assist) / HDC	● / —
EPB (Electronic Parking Brake) + Auto Hold	● / ●
i-Pedal (One-Pedal Driving Mode)	●
Steering Type	Rack and pinion, electric power steering
Rims	Aluminium alloy (17" or 18")
Tyre Specification	215/50 R18 (215/55 R17 on base)
Spare Tyre	Temporary / non-full-size
EXTERIOR
Panoramic Sunroof (openable) + Electric Sunshade	●
LED Headlights	●
LED Daytime Running Lights (DRL)	●
Rear Fog Lights	●
Side Mirrors w/ Turn Signal Indicators	●
Power Adjustable Side Mirrors	●
Power Folding Side Mirrors	●
Heated Side Mirrors	●
Electric Hidden Door Handles	●
Electric Tailgate (Power Tailgate)	●
Rear Rain Wiper	●
Roof Rails / Roof Rack Guide Rail	●
Body Colours	SongHua Yellow / Starry Green /Hyper Silver / Free Gray / Elegant Gray / Polar White / Night Shadow Black (market dependent)
Approach / Departure Lighting	—
INTERIOR
Multi-Function Steering Wheel	● (audio / phone / cruise / info)
Steering Wheel Material	PVC / Microfiber leather-trimmed
Steering Column Adjustment	4-way adjustable
PVC / Synthetic Leather Seats	● Standard (Exclusive: PVC; Premium: upgraded)
Driver Seat – 6-way Power Adjustable	●
Front Passenger Seat – 4-way Power Adjustable	●
Driver's Seat Back Fully Foldable	●
Front Seat Ventilation	●
Heated Front Seats	— (market / trim dependent)
Second-Row 40/60 Split-folding Seats	●
Rear Seat Centre Armrest	●
Rear Seat Centre Headrest	●
10.25" LCD Instrument Cluster	●
14.6" Touch Control Central Screen	●
Keyless Entry & Keyless Start	●
i-Pedal (Electronic Pedal) Mode	●
Auto Anti-Glare Interior Rearview Mirror	● (Electric)
32-Color Interior Ambient Lighting	●
Front 12V Power Outlet	●
Front & Second-Row USB Ports (A+C)	●
USB Port on Rearview Mirror (5V)	●
Front & Rear Windows One-Touch Up/Down (Anti-Pinch)	●
Rear A/C Outlets	●
Dual-Zone / Automatic A/C	● (Auto A/C)
PM2.5 Cabin Filter	●
Mobile Phone Wireless Charging	●
INFOTAINMENT & CONNECTIVITY
Audio & Video System (Multi-language)	● (EN/TH/ID/MS/zh-TW/VI/ES/PT/AR)
Bluetooth® Handsfree Phone System	●
Speaker Count	6 speakers
Apple CarPlay	— / ○ (market dependent)
Android Auto	— / ○ (market dependent)
Wi-Fi Hotspot	— (not available on 410 trim)
Online Navigation	●
Online Music	●
Mobile App Remote Control	●
4-Zone / Multi-Zone Voice Recognition	● (ADiGO smart voice)
Intelligent Voice Control	●
540° Panoramic HD Surround Imaging	● (360° + underbody view)
SAFETY & SECURITY
Driver & Front Passenger Airbags	● (2)
Front Side Airbags	● (2)
Side Curtain Airbags (full coverage)	●
Front Seat Belt Pretensioners & Force Limiters	●
Front Seat Belt Reminder (Visual + Audible)	●
Rear Seat Belt Reminder	●
ISOFIX Child Safety Seat Anchors	●
i-Size Child Seat Anchors	●
TPMS (Tire Pressure Monitoring System)	●
ABS + EBD + ESP + VDC + TCS	● All standard
Braking Energy Recovery System	●
Auto Hold	●
Child Safety Locks (Rear Doors)	●
Immobiliser & Anti-Theft Alarm	●
e-Call Emergency Call	● (EU requirement)
GLONASS / GPS	●
360° Panoramic / HD Surround Camera	●
Front & Rear Parking Radar	●
Rearview Mirror with USB (dash cam ready)	●
ADAS (ADiGO DRIVING ASSISTANCE)
Processing Chip	Mobileye EyeQ4 (2 TOPS compute)
Sensors: Radar / Camera / Ultrasonic	3 / 5 / 12
ACC (Adaptive Cruise Control w/ Stop & Go)	●
ICA (Intelligent Cruise Assist)	●
TJA (Traffic Jam Assist)	●
AEB (Automatic Emergency Braking)	●
FCW (Forward Collision Warning)	●
LDW (Lane Departure Warning)	●
LKA (Lane Keeping Assist)	●
TSR (Traffic Sign Recognition)	●
BSD (Blind Spot Detection)	●
DOW (Door Open Warning)	●
RCTA (Rear Cross Traffic Alert)	●
RCW (Rear Collision Warning)	●
IHBC (Intelligent High Beam Control)	●
