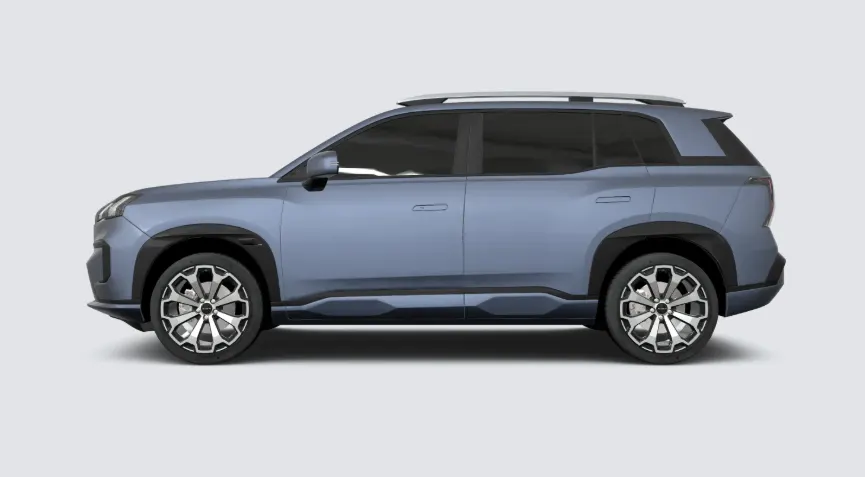

AION V 510 EU Whole Vehicle Type Approval (WVTA)
Export quotationPrice on request
Contact us for the latest price, configuration and availability.
Original price information · confirm values
- Original listed price: 24600
- Original listed price: 26500
Source values retained for reference. Zero or placeholder values are not a selling price.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full original configuration
Complete source tables retained. Scroll across for multi-edition tables; confirm the exact edition with your quotation.
| Item |
AION V Premium 510 |
AION V Luxury 510 |
| BASIC INFORMATION | ||
| Length × Width × Height (mm) | 4605 × 1876× 1686 | 4605 × 1876 × 1686 |
| Wheelbase (mm) | 2775 | 2775 |
| Seating Capacity | 5 | 5 |
| Max. Power (kW) | 150 | 150 |
| Max. Torque (Nm) | 210 | 210 |
| Top Speed (km/h) | 160 | 160 |
| Przyspieszenie (0-100 km/h) | 7.9 | 7.9 |
| Drive Mode | FWD (Front-Wheel Drive) | FWD (Front-Wheel Drive) |
| Turning Radius (m) | 5.6 | 5.6 |
| Min. Ground Clearance (mm, unladen) | 166 | 166 |
| Trunk Volume (L) | 427 – 978 | 427 – 978 |
| Roof Load (kg) | 75 | 75 |
| Brake System | Front ventilated disc / Rear disc | Front ventilated disc / Rear disc |
| Suspension | Front MacPherson independent / Rear torsion beam | Front MacPherson independent / Rear torsion beam |
| Kerb Weight (kg) | ≈ 1995 | ≈ 1995 |
| Tyre Specification | 225/45 R19 | 225/45 R19 |
| BATTERY & RANGE | ||
| Battery Technology | Magazine Battery 2.0 | Magazine Battery 2.0 |
| Battery Chemistry | LFP (Lithium Iron Phosphate) | LFP (Lithium Iron Phosphate) |
| Battery Capacity (kWh) | 75.26 | 75.26 |
| Combined Range (km, WLTP) | 510 | 510 |
| City Range (km, WLTP) | 708 | 708 |
| Combined Consumption (kWh/100km, WLTP) | 16.7 | 16.7 |
| Charging Interface | AC: Type 2 / DC: CCS2 | AC: Type 2 / DC: CCS2 |
| Max. AC Charging Power | 11 kW | 11 kW |
| AC 0–100% Charging Time | 8.5 h | 8.5 h |
| V2L (Vehicle-to-Load) | ● Standard | ● Standard |
| Max. DC Charging Power | 180 kW | 180 kW |
| DC 10–80% Fast Charging Time | 24 min | 24 min |
| DC 30–80% Fast Charging Time | 18 min | 18 min |
| EXTERIOR | ||
| 19" Aluminum Alloy Wheels | ● | ● |
| LED Headlights | ● | ● |
| Automatic Headlights | ● | ● |
| LED Daytime Running Lights | ● | ● |
| LED Rear Fog Light | ● | ● |
| LED Tail Lights | ● | ● |
| Active Front Grille Shutter | — | — |
| Hidden Door Handles | Power | Power |
| Front Windshield Heating | — | — |
| Rear Window Defrost & Demist | ● | ● |
| Panoramic Glass Roof + Electric Sunshade | ● | ● |
| Outside Mirror (Power-fold / Heating / Memory) | ● | ● |
| Roof Rails | ● | ● |
| INTERIOR | ||
| Leatherette-Trimmed Steering Wheel | ● | ● |
| 4-Way Adjustable Steering Column | ● | ● |
| Heated Steering Wheel | — | — |
| Seat Upholstery | PVC Leatherette | PVC / Genuine Leather |
| 6-Way Power Driver Seat | ● | ● |
| 4-Way Power Front Passenger Seat | ● | ● |
| Heated & Ventilated Front Seats | ● | ● |
| Front Seat Memory | ● | ● |
| 8-Point Massage Front Seats | — | ● |
| Second-Row Tray Table | — | ● |
| Auto Anti-Glare Interior Rearview Mirror | ● | ● |
| Sun Visors (Vanity Mirror with LED) | Standard vanity mirror | Large vanity mirror |
| Second-Row Backrest Recline (max.) | 137° | 137° |
| Rear Centre Headrest & Armrest / 40-60 Split Fold | ● | ● |
| Laminated Soundproof Windshield | ● | ● |
| Front Door Laminated Soundproof Glass | ● | ● |
| 4-Door One-Touch Up/Down (Anti-Pinch) | ● | ● |
| Dual-Zone Automatic Climate Control | ● | ● |
| Heat Pump | ● | ● |
| Rear A/C Outlets | ● | ● |
| Power Tailgate | ● | ● |
| CoolHot Box (–18°C ~ +50°C) | — | ● |
| Front 12V Power Supply | ● | ● |
| Trunk 12V Power Supply | ● | ● |
| PM2.5 Cabin Filter | ● | ● |
| PM2.5 Sensor | — | ● |
| Ambient Lighting | ● | ● |
| Wireless Phone Charging | ● | ● |
| USB Ports (Front 1×A + 1×C, Rear 1×A) | ● | ● |
| Non-Full-Size Spare Tyre | ● | ● |
| Tyre Repair Kit (Inflator + Sealant) | ● | ● |
| ENTERTAINMENT & TECHNOLOGY | ||
| 8.88" LCD Instrument Cluster | ● | ● |
| 14.6" Touch Control Central Screen | ● | ● |
| DAB / FM Radio | ● | ● |
| Apple CarPlay | ● | ● |
| Android Auto | ● | ● |
| 4-Zone Voice Recognition | ● | ● |
| Driver Monitoring System (DMS) | — | ● |
| Bluetooth | ● | ● |
| Speaker Count | 9 | 9 |
| Online Navigation | ● | ● |
| Online Music | ● | ● |
| In-Car WiFi Hotspot | ● | ● |
| Mobile App Remote Control | ● | ● |
| SAFETY | ||
| Driver & Front Passenger Airbags | ● | ● |
| Front Side Airbags | ● | ● |
| Front Centre Airbag | ● | ● |
| Side Curtain Airbags (2.3 m full coverage) | ● | ● |
| ESP + ABS + EBD | ● | ● |
| Hydraulic Brake Assist (HBA) | ● | ● |
| Hill Start Assist (HHC) + Hill Descent Control (HDC) | ● | ● |
| Electronic Parking Brake (EPB) + Auto Hold | ● | ● |
| One-Pedal (iPedal) Mode | ● | ● |
| Tire Pressure Monitoring System (TPMS) | ● | ● |
| ISOFIX Child Seat Anchors | ● | ● |
| i-Size Child Seat Anchors | ● | ● |
| Front Seat Belt Pretensioners & Force Limiters | ● | ● |
| Front Seat Belt Reminder (Visual + Audible) | ● | ● |
| Rear Seat Belt Reminder (Visual + Audible) | ● | ● |
| Front Seat Belt Locking Tongue (DLT) | ● | ● |
| Rear Outboard Seat Belt Pretensioners | ● | ● |
| 3-Point Centre Rear Seat Belt | ● | ● |
| Child Presence Detection (CPD) | ● | ● |
| Immobiliser & Anti-Theft Alarm | ● | ● |
| e-Call Emergency Call | ● | ● |
| GLONASS | ● | ● |
| Front & Rear Parking Radar | ● | ● |
| 360° Surround View Camera | ● | ● |
| Alcohol Interlock Interface | ● | ● |
| DRIVING ASSISTANCE | ||
| Adaptive Cruise Control (ACC) | ● | ● |
| Intelligent Cruise Assist (ICA) | ● | ● |
| Automatic Emergency Braking (AEB) | ● | ● |
| Forward Collision Warning (FCW) | ● | ● |
| Traffic Sign Recognition (TSR) | ● | ● |
| Lane Departure Warning (LDW) | ● | ● |
| Emergency Lane Keeping Assist (ELKA) | ● | ● |
| Lane Departure Prevention (LDP) | ● | ● |
| Intelligent High Beam Control (IHBC) | ● | ● |
| Blind Spot Detection (BSD) | ● | ● |
| Door Open Warning (DOW) | ● | ● |
| Rear Cross Traffic Alert (RCTA) | ● | ● |
| Rear Collision Warning (RCW) | ● | ● |
