| Exterior | ||

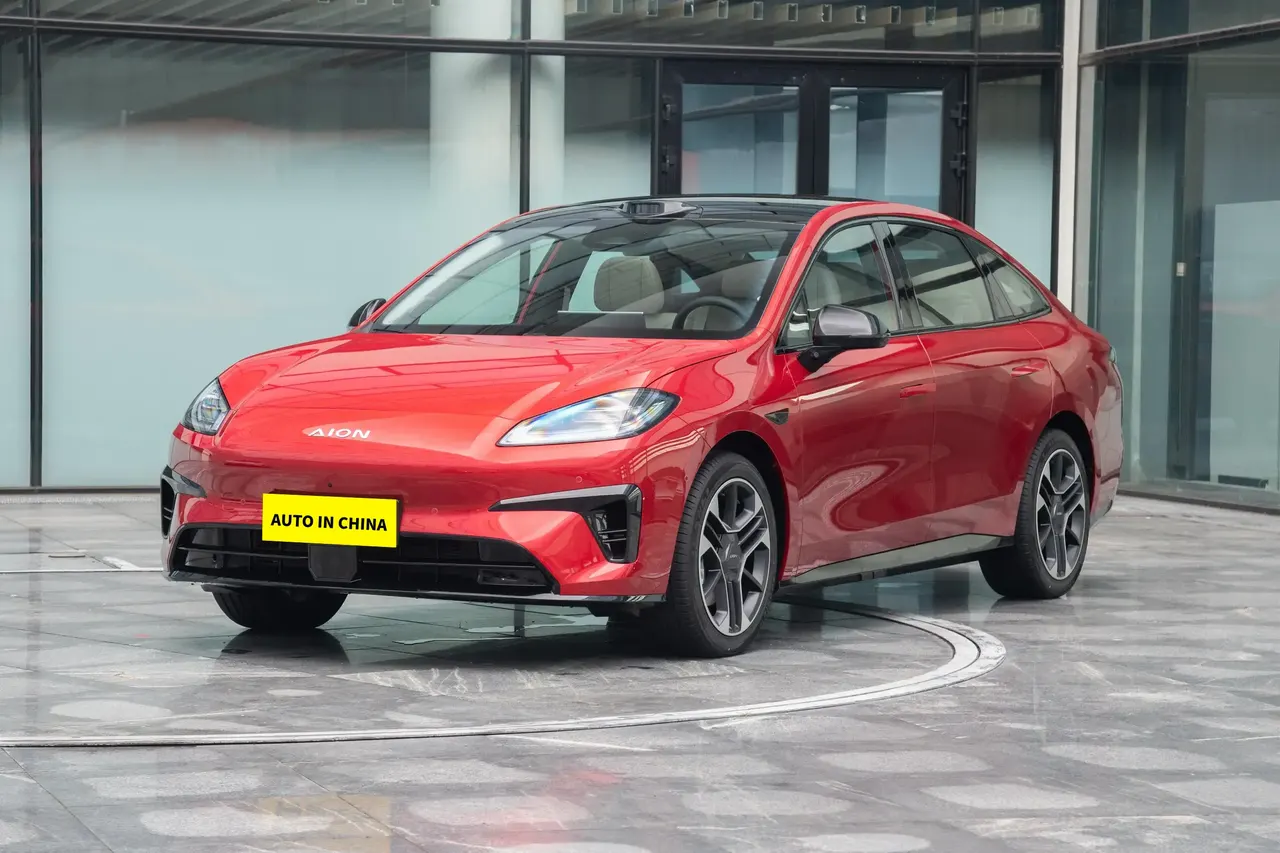

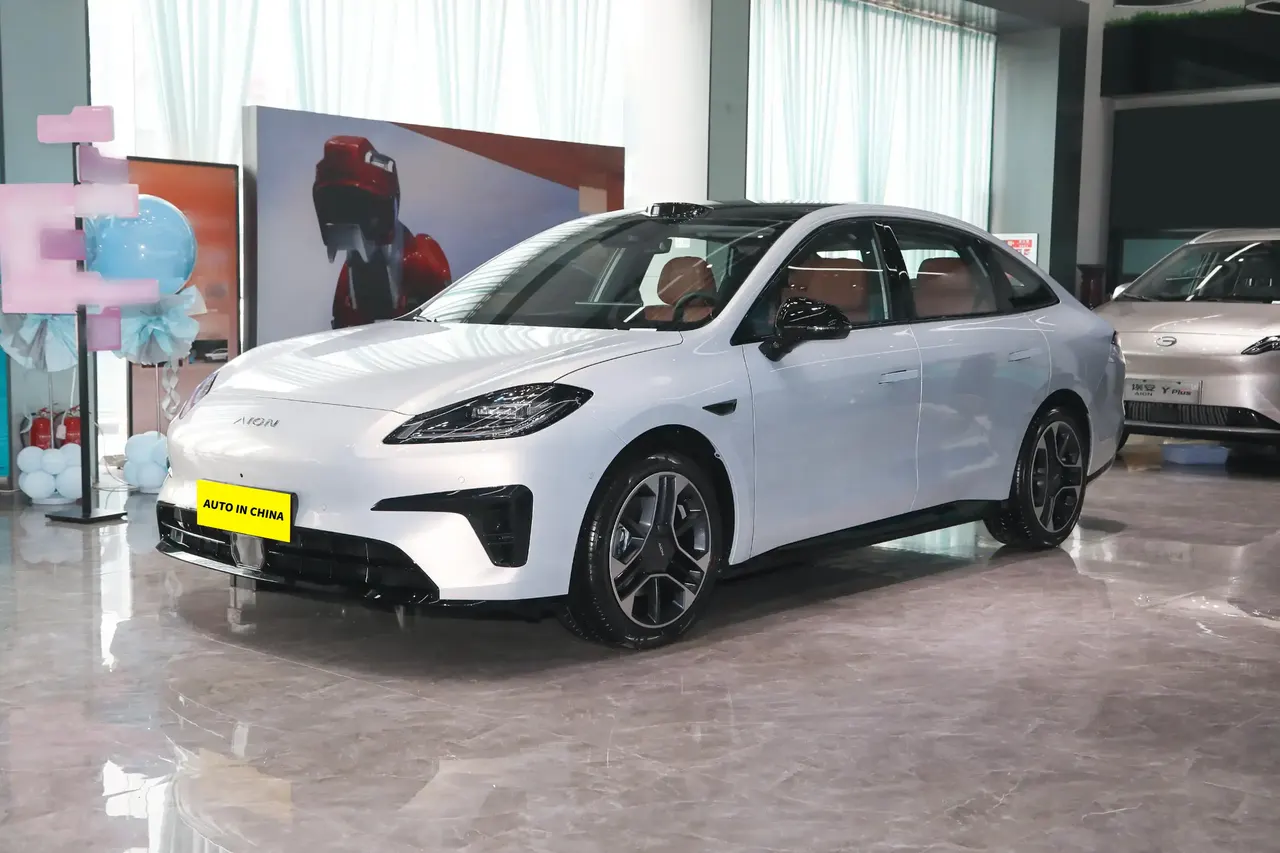

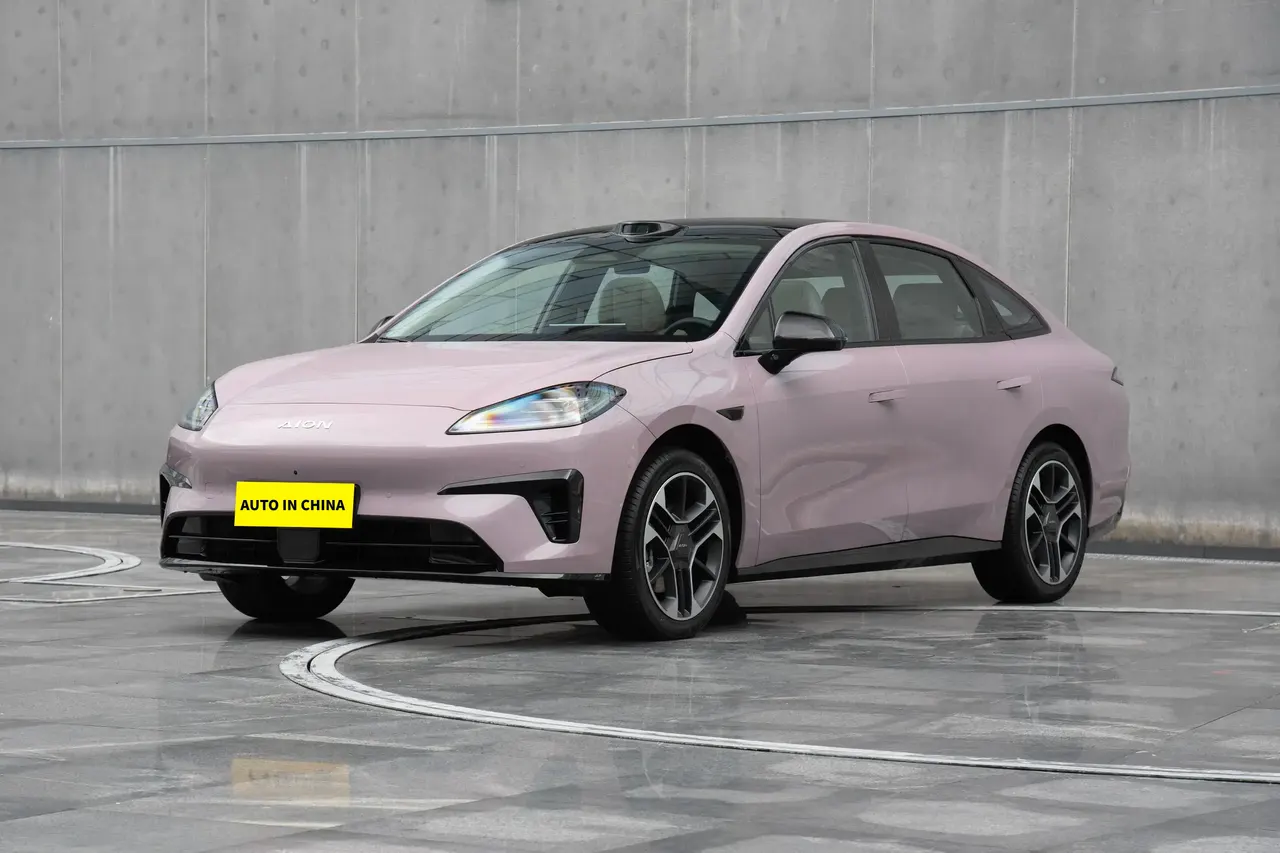

 Corona Red |  Crystal Purple |  Holographic Silver |

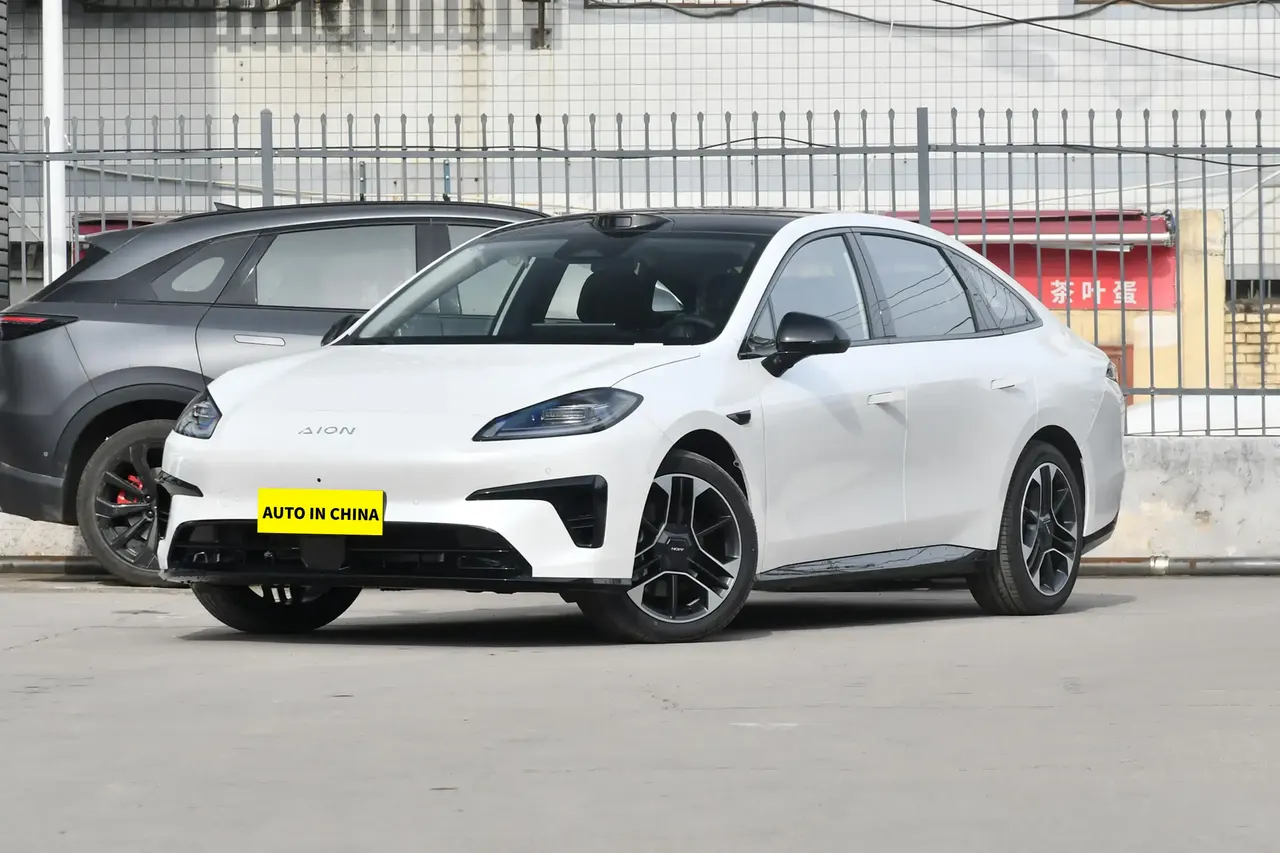

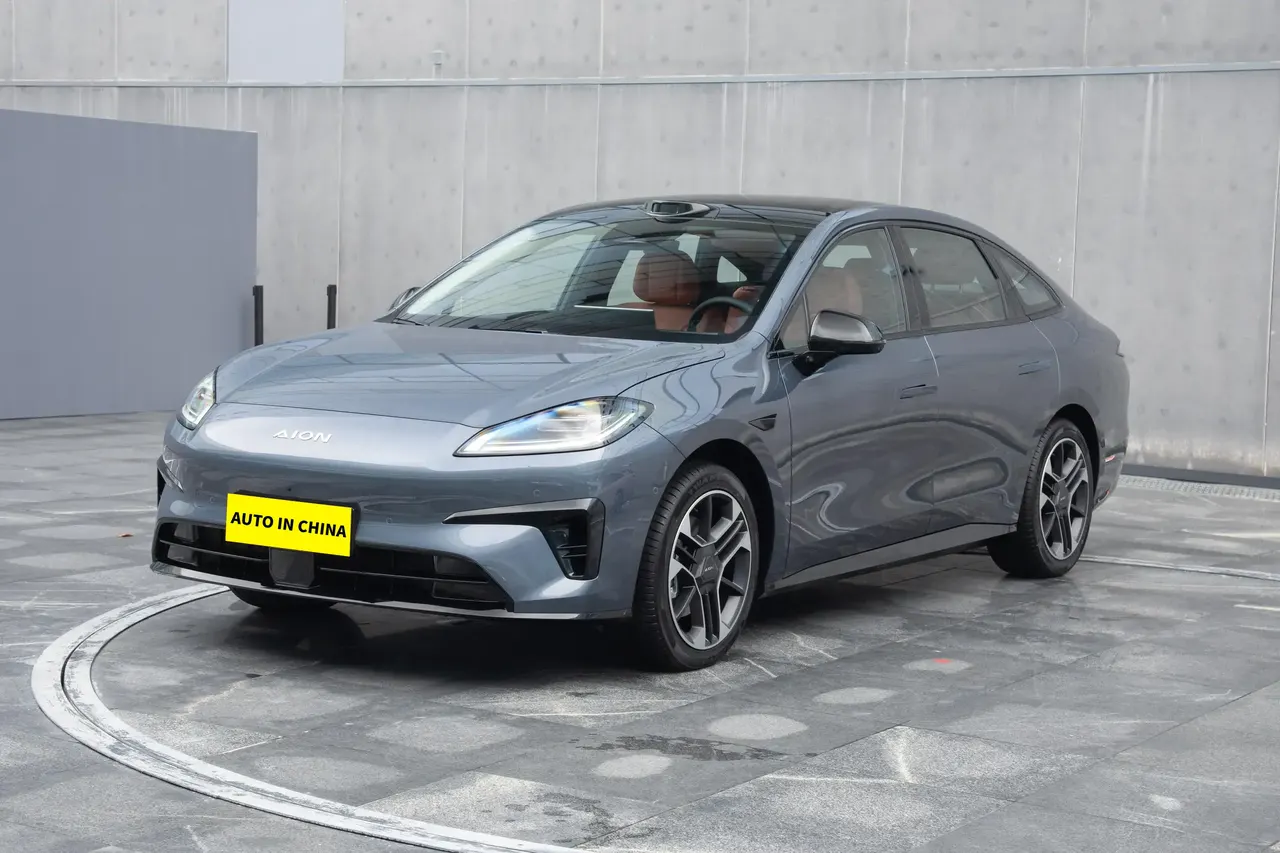

 Polar White |  Sea Fluorescent Gray | |
| Interior | ||
 |  |  |

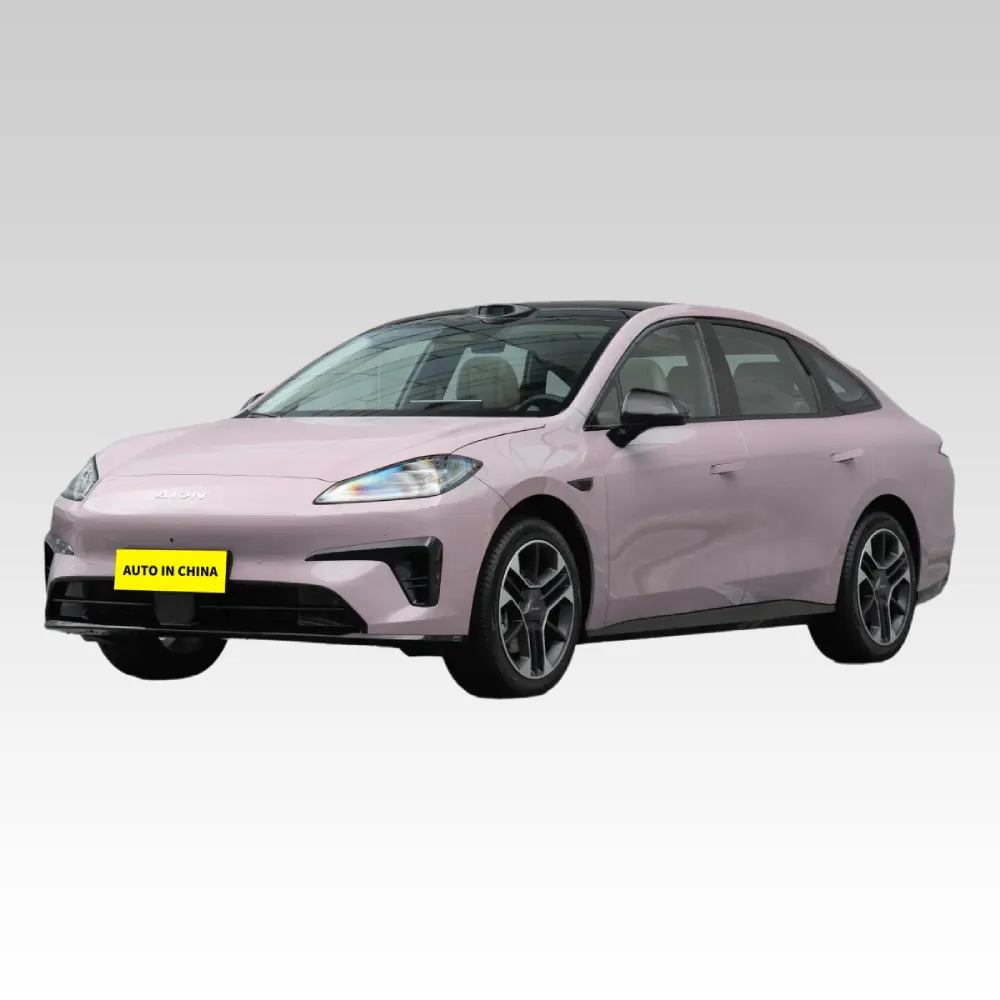

| AION RT China Car Dealer | AION RT 2025 520 LiDAR Edition | AION RT 2025 650 LiDAR Edition |
| Basic Information | ||
| Manufacturer | GAC Aion New Energy | GAC Aion New Energy |
| level | Compact car | Compact car |
| Energy Type | Pure Electric | Pure Electric |
| Availability | 2024.11 | 2024.11 |
| Electric Motor | Pure electric 204 horsepower | Pure electric 224 horsepower |
| Pure electric range (km) Ministry of Industry and Information Technology | 520 | 650 |
| Pure electric range (km) CLTC | 520 | 650 |
| High voltage fast charging platform | ●400V | ●400V |
| Charging time (hours) | Fast charge 0.3 hours | Fast charge 0.3 hours |
| Fast charging capacity (%) | 30-80 | 30-80 |
| Maximum power (kW) | 150(204Ps) | 165(224Ps) |
| Maximum torque (N·m) | 240 | 240 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length x width x height (mm) | 4865x1875x1520 | 4865x1875x1520 |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Maximum speed (km/h) | 163 | 163 |
| Official 0-100km/h acceleration time (s) | 7.5 | 7.7 |
| Power consumption per 100 km (kWh/100km) | 11.7kWh | 11.9kWh |
| Vehicle warranty period | 4 years or 150,000 km | 4 years or 150,000 km |
| Body | ||
| Length(mm) | 4865 | 4865 |
| Width(mm) | 1875 | 1875 |
| Height (mm) | 1520 | 1520 |
| Wheelbase(mm) | 2775 | 2775 |
| Front wheel track (mm) | 1602 | 1602 |
| Rear wheelbase(mm) | 1606 | 1606 |
| Body structure | Sedan | Sedan |
| Number of doors | 4 | 4 |
| Door opening method | Swing door | Swing door |
| Number of seats | 5 | 5 |
| Curb weight(kg) | 1700 | 1780 |
| Full load mass (kg) | 2120 | 2220 |
| Luggage compartment volume (L) | 540 | 540 |
| Electric Motor | ||
| Motor Description | Pure electric 204 horsepower | Pure electric 224 horsepower |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 150 | 165 |
| Total motor horsepower (Ps) | 204 | 224 |
| Total torque of the motor (N·m) | 240 | 240 |
| Maximum power of front motor (kW) | 150 | 165 |
| Maximum torque of front motor (N·m) | 240 | 240 |
| Number of drive motors | Single motor | Single motor |
| Motor layout | Pre | Pre |
| Battery/Charging | ||
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Battery Feature Technology | Magazine Battery | Magazine Battery |
| Battery brand | CATL | CATL |
| Battery Pack Warranty | Lifetime warranty for the first owner (liability exemption clause is subject to official regulations) | Lifetime warranty for the first owner (liability exemption clause is subject to official regulations) |
| Battery capacity (kWh) | 55.1 | 68.1 |
| Battery charging rate | ●3C | ●3C |
| Battery Charging | Fast charge 0.3 hours | Fast charge 0.3 hours |
| ●Fast charging port | ●Fast charging port | |
| Maximum fast charging power (kw) | 150 | 150 |
| Fast charging port location | Right fender | Right fender |
| Slow charging port location | Right fender | Right fender |
| Battery Temperature Management System | ●Low temperature heating | ●Low temperature heating |
| ●Liquid Cooling | ●Liquid Cooling | |
| VTOL mobile power station function | ●Standard | ●Standard |
| VTOL maximum external discharge power | 3.3kW | 3.3kW |
| Gearbox | ||
| Gearbox Description | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Number of gears | 1 | 1 |
| Gearbox Type | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Chassis/Steering | ||
| Drive mode | Front front drive | Front front drive |
| Front suspension type | McPherson independent suspension | McPherson independent suspension |
| Rear suspension type | Trailing arm torsion beam non-independent suspension | Trailing arm torsion beam non-independent suspension |
| Steering type | Electric power assist | Electric power assist |
| Vehicle structure | Load-bearing | Load-bearing |
| Wheels/Brakes | ||
| Front brake type | Ventilated disc | Ventilated disc |
| Rear brake type | Solid disc | Solid disc |
| Parking brake type | Electronic parking brake | Electronic parking brake |
| Front tire size | 235/45 R18 | 235/45 R18 |
| Rear tire size | 235/45 R18 | 235/45 R18 |
