| Toyota Abaron | 2024 Abaron Intelligent Electric Hybrid 2.0L E-CVT Signature Edition | 2024 Abaron Intelligent Electric Hybrid Dual Engine 2.0L E-CVT Luxury Edition | 2024 Abaron Intelligent Electric Hybrid 2.0L E-CVT Prestige Edition | 2024 Abaron Intelligent Electric Hybrid 2.0L E-CVT Exclusive Edition |
| Basic Information | ||||
| Manufacturer | FAW Toyota | FAW Toyota | FAW Toyota | FAW Toyota |
| level | Mid-size car | Mid-size car | Mid-size car | Mid-size car |
| Energy Type | Hybrid | Hybrid | Hybrid | Hybrid |
| Availability | 2024.07 | 2024.07 | 2024.07 | 2024.07 |
| engine | 2.0L 152HP L4 Hybrid | 2.0L 152HP L4 Hybrid | 2.0L 152HP L4 Hybrid | 2.0L 152HP L4 Hybrid |
| Maximum power (kW) | 145 | 145 | 145 | 145 |
| Maximum torque (N·m) | 188 | 188 | 188 | 188 |
| Engine maximum torque (N·m) | 188 | 188 | 188 | 188 |
| Maximum torque of motor (N·m) | 206 | 206 | 206 | 206 |
| Gearbox | E-CVT | E-CVT | E-CVT | E-CVT |
| Length x width x height (mm) | 4990x1850x1450 | 4990x1850x1450 | 4990x1850x1450 | 4990x1850x1450 |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Maximum speed (km/h) | 180 | 180 | 180 | 180 |
| WLTC comprehensive fuel consumption (L/100km) | 4.31 | 4.31 | 4.31 | 4.54 |
| Body | ||||
| Wheelbase(mm) | 2870 | 2870 | 2870 | 2870 |
| Front wheel track (mm) | 1595 | 1585 | 1585 | 1585 |
| Rear wheelbase(mm) | 1605 | 1595 | 1595 | 1595 |
| Body structure | Sedan | Sedan | Sedan | Sedan |
| Number of doors | 4 | 4 | 4 | 4 |
| Door opening method | Swing door | Swing door | Swing door | Swing door |
| Number of seats | 5 | 5 | 5 | 5 |
| Curb weight(kg) | 1625 | 1635 | 1640 | 1670 |
| Full load mass (kg) | 2120 | 2120 | 2120 | 2120 |
| Fuel tank capacity(L) | 49 | 49 | 49 | 49 |
| engine | ||||
| Engine Model | M20G | M20G | M20G | M20G |
| Displacement (mL) | 1987 | 1987 | 1987 | 1987 |
| Displacement(L) | 2 | 2 | 2 | 2 |
| Air intake form | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated |
| Engine layout | Sideways | Sideways | Sideways | Sideways |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Number of valves per cylinder | 4 | 4 | 4 | 4 |
| Compression ratio | 14 | 14 | 14 | 14 |
| Valve mechanism | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 152 | 152 | 152 | 152 |
| Maximum power (kW) | 112 | 112 | 112 | 112 |
| Maximum net engine power (kW) | 112 | 112 | 112 | 112 |
| Maximum power speed (rpm) | 6000 | 6000 | 6000 | 6000 |
| Maximum torque (N·m) | 188 | 188 | 188 | 188 |
| Maximum torque speed (rpm) | 4400-5200 | 4400-5200 | 4400-5200 | 4400-5200 |
| Engine-specific technologies | VVT-iE | VVT-iE | VVT-iE | VVT-iE |
| Fuel form | Hybrid | Hybrid | Hybrid | Hybrid |
| Fuel grade | 92# | 92# | 92# | 92# |
| Oil supply method | Mixed injection | Mixed injection | Mixed injection | Mixed injection |
| Cylinder head material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Cylinder material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Environmental standards | China VI | China VI | China VI | China VI |
| Electric Motor | ||||
| Motor Description | Hybrid 113 hp | Hybrid 113 hp | Hybrid 113 hp | Hybrid 113 hp |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 83 | 83 | 83 | 83 |
| Total motor horsepower (Ps) | 113 | 113 | 113 | 113 |
| Total torque of the motor (N·m) | 206 | 206 | 206 | 206 |
| Maximum power of front motor (kW) | 83 | 83 | 83 | 83 |
| Maximum torque of front motor (N·m) | 206 | 206 | 206 | 206 |
| System total power (kW) | 145 | 145 | 145 | 145 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Pre | Pre | Pre | Pre |
| Battery/Charging | ||||
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery brand | Sinogy Toyota | Sinogy Toyota | Sinogy Toyota | Sinogy Toyota |
| Gearbox | ||||
| Gearbox Description | E-CVT | E-CVT | E-CVT | E-CVT |
| Number of gears | Continuously variable speed | Continuously variable speed | Continuously variable speed | Continuously variable speed |
| Gearbox Type | E-CVT | E-CVT | E-CVT | E-CVT |
| Chassis/Steering | ||||
| Drive mode | Front front drive | Front front drive | Front front drive | Front front drive |
| Front suspension type | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension |
| Rear suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Steering type | Electric power assist | Electric power assist | Electric power assist | Electric power assist |
| Vehicle structure | Load-bearing | Load-bearing | Load-bearing | Load-bearing |
| Wheels/Brakes | ||||
| Front brake type | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake type | Solid disc | Solid disc | Solid disc | Solid disc |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire size | 215/55 R17 | 235/45 R18 | 235/45 R18 | 235/40 R19 |
| Rear tire size | 215/55 R17 | 235/45 R18 | 235/45 R18 | 235/40 R19 |
| Spare tire specifications | ●Not full size | ●Not full size | ●Not full size | ●Not full size |
1 / 11 vehicle photos · Select a thumbnail to view. Photos may show different colors or configurations.
Product catalogue

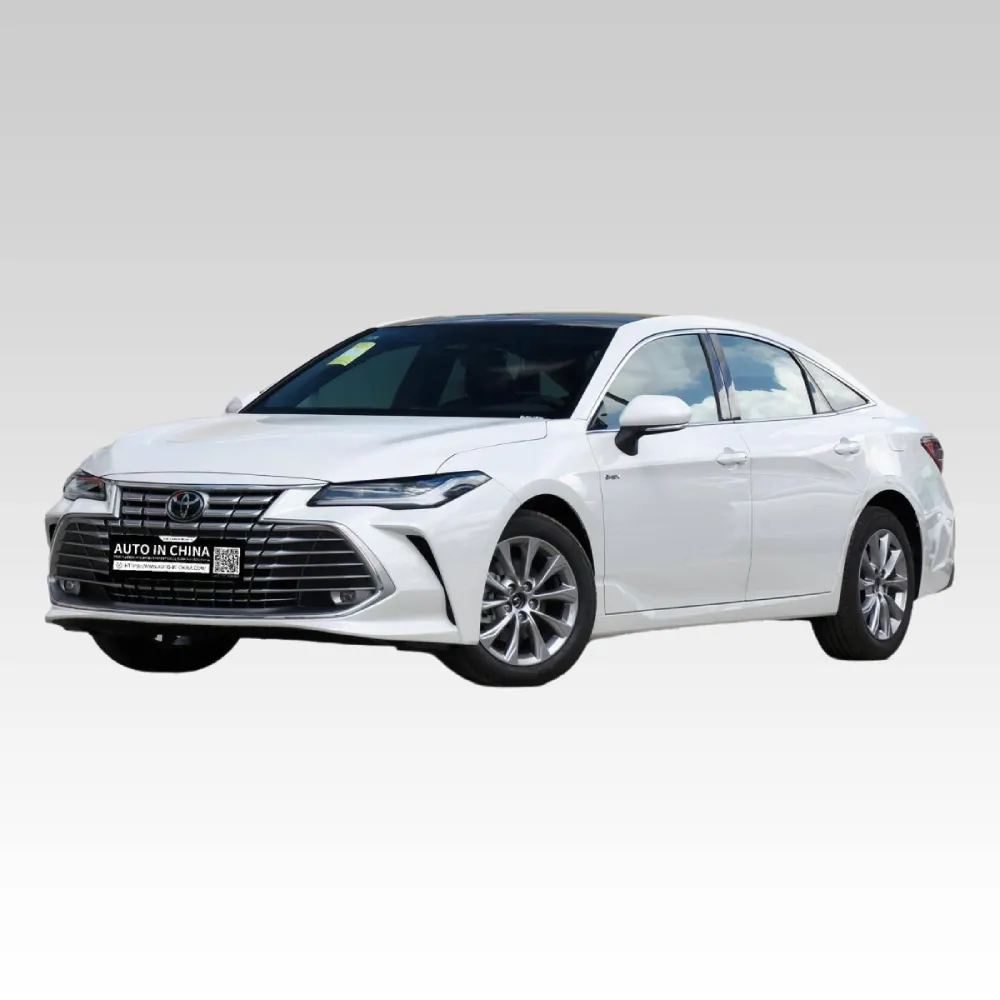

2024 Toyota Abaron 2.0L 152HP L4 Hybrid China Car Exporter
Export quotationPrice on request
Contact us for the latest price, configuration and availability.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full configuration
Scroll across to compare the listed editions. Confirm the exact edition and equipment with your quotation.
Grouped specifications
Vehicle specifications
Choose a section, then select its heading to view the listed specifications.
Specifications may vary by edition. Confirm the exact trim and equipment with your quotation.
Specify your required edition and destination in your enquiry so our team can confirm the specifications.
Build your export quotation
Vehicle, destination, quantity and timing — start with your requirements.
