| Deepal L07 | 230Max Extended Range Edition | 230Max Qiankun Intelligent Driving ADS SE Edition | 300Max Extended Range Edition | 300Max Qiankun Intelligent Driving ADS SE Edition | 530Max Pure Electric Version | 530Max Qiankun Intelligent Driving ADS SE Edition |
| Basic Information | ||||||
| Manufacturer | Deepal Car | Deepal Car | Deepal Car | Deepal Car | Deepal Car | Deepal Car |
| level | Mid-size car | Mid-size car | Mid-size car | Mid-size car | Mid-size car | Mid-size car |
| Energy Type | Extended Range | Extended Range | Extended Range | Extended Range | Pure Electric | Pure Electric |
| Availability | 2024.09 | 2024.09 | 2024.09 | 2024.09 | 2024.09 | 2024.09 |
| Electric Motor | Extended range 218 horsepower | Extended range 218 horsepower | Extended range 258 hp | Extended range 258 hp | Pure electric 252 horsepower | Pure electric 252 horsepower |
| Pure electric range (km) Ministry of Industry and Information Technology | 170 | 170 | 220 | 220 | 530 | 530 |
| Pure electric range (km) WLTC | 170 | 170 | 220 | 220 | ||
| Pure electric range (km) CLTC | 230 | 230 | 300 | 300 | 530 | 530 |
| Charging time (hours) | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Maximum power (kW) | 160(218Ps) | 160(218Ps) | 190(258Ps) | 190(258Ps) | 185(252Ps) | 185(252Ps) |
| Maximum torque (N路m) | 320 | 320 | 320 | 320 | 310 | 310 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length x width x height (mm) | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 |
| Body structure | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback |
| Maximum speed (km/h) | 175 | 175 | 175 | 175 | 170 | 170 |
| Official 0-100km/h acceleration time (s) | 7.5 | 7.5 | 6.8 | 6.8 | 6.2 | 6.2 |
| WLTC comprehensive fuel consumption (L/100km) | 0.73 | 0.73 | ||||
| Power consumption per 100 km (kWh/100km) | 15.5kWh | 15.5kWh | 12.4kWh | 12.4kWh | ||
| Vehicle warranty period | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km |
| Body | ||||||
| Length(mm) | 4875 | 4875 | 4875 | 4875 | 4875 | 4875 |
| Width(mm) | 1890 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Height(mm) | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase(mm) | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
| Front wheel track (mm) | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 |
| Rear track (mm) | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Body structure | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Door opening method | Swing door | Swing door | Swing door | Swing door | Swing door | Swing door |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Curb weight(kg) | 1865 | 1865 | 1920 | 1920 | 1855 | 1855 |
| Full load mass (kg) | 2295 | 2295 | 2335 | 2335 | 2270 | 2270 |
| Fuel tank capacity (L) | 45 | 45 | 45 | 45 | ||
| Front luggage compartment volume (L) | 70 | 70 | ||||
| Luggage compartment volume (L) | 473-1180 | 473-1180 | 473-1180 | 473-1180 | 543-1250 | 543-1250 |
| Drag coefficient (Cd) | 0.215 | 0.215 | ||||
| engine | ||||||
| Engine Model | JL469Q1 | JL469Q1 | JL469Q1 | JL469Q1 | ||
| Displacement (mL) | 1497 | 1497 | 1497 | 1497 | ||
| Displacement(L) | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Air intake form | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated | ||
| Engine layout | Sideways | Sideways | Sideways | Sideways | ||
| Cylinder arrangement | L | L | L | L | ||
| Number of cylinders | 4 | 4 | 4 | 4 | ||
| Number of valves per cylinder | 4 | 4 | 4 | 4 | ||
| Valve mechanism | DOHC | DOHC | DOHC | DOHC | ||
| Maximum horsepower (Ps) | 98 | 98 | 98 | 98 | ||
| Maximum power (kW) | 72 | 72 | 72 | 72 | ||
| Maximum power speed (rpm) | 5600 | 5600 | 5600 | 5600 | ||
| Maximum torque (N路m) | 125 | 125 | 125 | 125 | ||
| Maximum torque speed (rpm) | 3000 | 3000 | 3000 | 3000 | ||
| Fuel form | Extended Range | Extended Range | Extended Range | Extended Range | Pure Electric | Pure Electric |
| Fuel grade | 92# | 92# | 92# | 92# | ||
| Oil supply method | Multi-point EFI | Multi-point EFI | Multi-point EFI | Multi-point EFI | ||
| Cylinder head material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | ||
| Cylinder material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | ||
| Environmental standards | National VI b | National VI b | National VI b | National VI b | ||
| Electric Motor | ||||||
| Motor Description | Extended range 218 horsepower | Extended range 218 horsepower | Extended range 258 hp | Extended range 258 hp | Pure electric 252 horsepower | Pure electric 252 horsepower |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 160 | 160 | 190 | 190 | 185 | 185 |
| Total motor horsepower (Ps) | 218 | 218 | 258 | 258 | 252 | 252 |
| Total torque of the motor (N路m) | 320 | 320 | 320 | 320 | 310 | 310 |
| Maximum power of rear motor (kW) | 160 | 160 | 190 | 190 | 185 | 185 |
| Maximum torque of rear motor (N路m) | 320 | 320 | 320 | 320 | 310 | 310 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Post | Post | Post | Post | Post | Post |

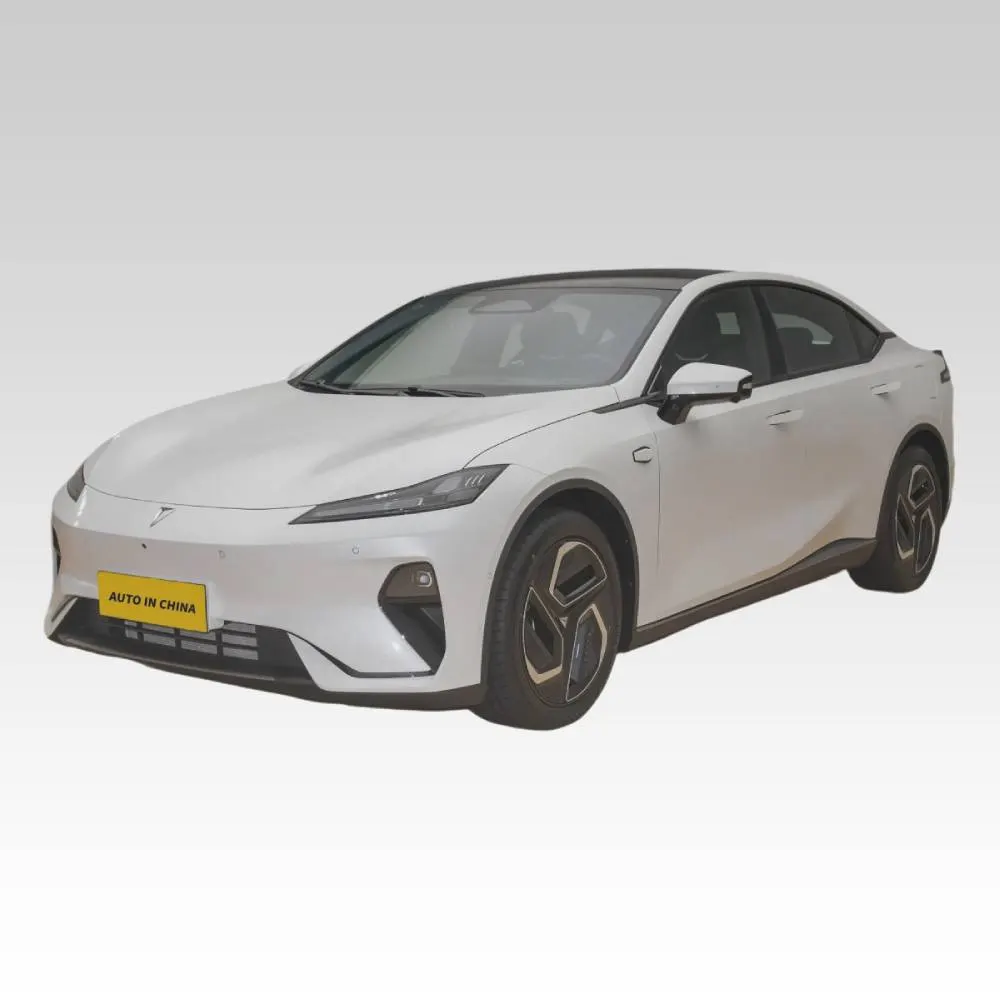

2024 Deepal L07 230/300/530Max Edition Car Trader From China
"PRICE" - means that the price is indicated for the city of Guangzhou (with all export documents). Further, the price increases depending on the delivery distance to different regions.
