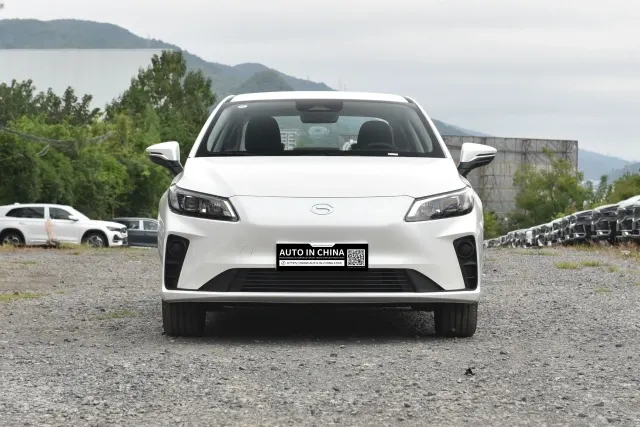

2026 AION S Xuan 580
Original listed vehicle price13340
Historical listing value. Confirm currency, current export price, options and delivery terms with your quotation.
Original price information
- Original listed price: 13340
Source values retained for reference. Zero or placeholder values are not a selling price.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full original configuration
Complete source tables retained. Scroll across for multi-edition tables; confirm the exact edition with your quotation.
| Basic Parameters | |
| Manufacturer | Aion (GAC Aion) |
| Class | Compact Car |
| Energy Type | Battery Electric (BEV) |
| Body Type | 4-Door 5-Seat Sedan |
| Length x Width x Height (mm) | 4805×1880×1545 |
| Wheelbase (mm) | 2750 |
| Front / Rear Track (mm) | 1600 / 1602 |
| Ground Clearance (mm) | 125 |
| Approach / Departure Angle (°) | 13 / 14 |
| Turning Radius (m) | 5.56 |
| Doors / Seats | 4 / 5 |
| Cargo Volume (L) | 453 |
| Drag Coefficient (Cd) | 0.211 |
| Curb Weight (kg) | 1610 |
| Gross Vehicle Weight (kg) | 2135 |
| Top Speed (km/h) | 130 |
| 0-100 km/h Acceleration (s) | - |
| Fuel Equivalent (L/100km) | 1.39 |
| Electric Motor | |
| Front Motor Brand | Suzhou Inovance |
| Front Motor Model | TZ180XS134 |
| Motor Type | Permanent Magnet / Synchronous |
| Number of Drive Motors | Single Motor |
| Motor Layout | Front-Mounted |
| Total Motor Power (kW) | 100 |
| Total Motor Power (Ps) | 136 |
| Total Motor Torque (N·m) | 225 |
| Battery / Charging | |
| Battery Type | LFP Battery |
| Cell Brand | CALB (China Aviation Lithium Battery) |
| Battery Cooling | Liquid Cooling |
| Battery Capacity (kWh) | 55.587/55.742/55.607kWh |
| CLTC Range (km) | 505 |
| Power Consumption (kWh/100km) | 12 |
| Fast Charging | Supported |
| Fast Charge Time (30%-80%) | Approx. 30 min |
| Chassis & Steering | |
| Drivetrain | Front-Engine, Front-Wheel Drive (FF) |
| Front Suspension | MacPherson Strut (Independent) |
| Rear Suspension | Torsion Beam (Semi-Independent) |
| Steering Assist | Electric Power Steering |
| Body Structure | Unibody |
| Wheels & Brakes | |
| Front Brakes | Ventilated Disc |
| Rear Brakes | Disc |
| Parking Brake | Electronic Parking Brake |
| Front / Rear Tire Size | 215/55 R17 |
| Wheel Material | Aluminum Alloy |
| Spare Tire | Non-Full-Size |
| Safety Features | |
| Driver / Passenger Airbags | ● / ● |
| Front Side Airbags | — |
| Front & Rear Curtain Airbags | — |
| Knee Airbag | — |
| Tire Pressure Monitoring | ● |
| Seatbelt Unfastened Reminder | ● |
| ABS Antilock | ● |
| Brake Force Distribution (EBD) | ● |
| Brake Assist (EBA) | ● |
| Traction Control (ASR) | ● |
| Stability Control (ESC) | ● |
| Driving Assistance / Handling | |
| Drive Mode Selection | Eco |
| Energy Recovery System | ● |
| Auto Hold | ● |
| Hill-Start Assist | ● |
| Cruise Control | ● |
| Adaptive Cruise / Full-Speed Adaptive Cruise | — |
| Lane Departure Warning | — |
| Lane Keeping Assist | — |
| Traffic Sign Recognition | — |
| Automatic Emergency Braking | — |
| Front Collision Warning | — |
| Reversing Image | ●(Reversing Image) |
| 360° Surround View | — |
| Front / Rear Parking Sensors | Front— / Rear ● |
| Ultrasonic Radar Count | 3 (Rear) |
| Camera Count | — |
| Exterior / Anti-theft | |
| Sunroof Type | —(No Sunroof; Optional on Some Trims) |
| Aluminum Alloy Wheels | ● |
| Engine Electronic Immobilizer | — |
| Central Door Locking | ● |
| Remote Key | ● |
| Keyless Start | ● |
| Keyless Entry | — |
| Interior / Steering Wheel | |
| Steering Wheel Material | Plastic (Leather Optional) |
| Steering Wheel Adjustment | Manual Tilt Adjustment |
| Multifunction Steering Wheel | ● |
| Trip Computer Display | ● |
| Digital Instrument Cluster Size | 3.5 in. (TFT Combination Gauge) |
| Gear Shift Type | Electronic Column Shifter |
| Seats | |
| Seat Material | Synthetic Leather |
| Driver Seat Adjustment | Fore/Aft, Backrest, Height (2-Way) Adjustment |
| Passenger Seat Adjustment | Fore/Aft, Backrest Adjustment |
| Driver / Passenger Power Adjustment | —(All Manually Adjusted) |
| Front Seat Heating / Ventilation | Front— / Rear— |
| Rear Seat Folding | Split-Folding |
| Front / Rear Center Armrest | Front ● / Rear — |
| Rear Cup Holder | — |
| Lighting | |
| Low Beam | Halogen |
| High Beam | Halogen |
| Daytime Running Lights | — |
| Automatic Headlights | — |
| Adaptive High Beams | — |
| Headlight Height Adjustment | ● |
| Follow-Me-Home Headlights | ● |
| Glass / Mirrors | |
| Front / Rear Power Windows | ● / ● |
| One-Touch Power Windows | Driver Side (One-Touch) |
| Anti-Pinch Windows | ● |
| Exterior Mirror Functions | Power Adjustment |
| Interior Mirror Functions | Manual Anti-Glare |
| Smart Connectivity / Multimedia | |
| Center Display Size | 8 in. (Touchscreen LCD) |
| Center Display Operation | Touchscreen |
| Satellite Navigation | — |
| Real-Time Traffic Display | — |
| Mobile Connectivity / Mapping | Factory Connectivity / Mapping |
| Connected Services | — |
| 4G / 5G Network | — |
| OTA Updates | ● |
| Wi-Fi Hotspot | — |
| Voice Recognition Control | — |
| Bluetooth / In-Car Telephone | ● |
| USB / Type-C Ports | USB: 2 Front / 1 Rear |
| Number of Speakers | 2 Speakers |
| Mobile App Remote Control | — |
| Climate / Comfort | |
| Climate Control Type | Automatic Climate Control |
| Heat Pump | ● |
| Rear Air Vents | ● |
| Dual-Zone Climate Control | ●(Dual-Zone Climate Control) |
| Cabin PM2.5 Filtration | ● |
| In-Car Air Purifier | — |
| Negative Ion Generator | — |
| Remarks | |
| Highlight Features | Ammo Battery, Knob / Column Shifter, Flat Rear Floor, Practical Orientation |
| Exterior Colors | Speed Silver, Polar White, Night Shadow Blacketc. |
Grouped specifications
Vehicle specifications
Choose a section, then select its heading to expand. All source values remain available.
Organized original source values, not manufacturer verification. Multiple values may describe different editions; confirm the exact trim before quotation.
Vehicle identity
- Body type
- SUV
- 4-Door 5-Seat Sedan
- Unibody
- Color
- Multiple colors
- Brand
- Aion (GAC Aion)
- Vehicle class
- Compact Car
Source information · needs review · 3 original source entries · Multiple original values retained · Different source wording or units; verify before publishing
Source information · needs review
Source information · needs review
Source information · needs review
Dimensions & space
- Overall dimensions
- 4805×1880×1545 mm
- Wheelbase
- 2750 mm
- Cargo volume
- 453 L
Source information · needs review
Source information · needs review
Source information · needs review
Powertrain
- Engine
- Permanent Magnet / Synchronous
- Motor power
- 100 kW
- 136 Ps
- Drive type
- Front-Engine, Front-Wheel Drive (FF)
Source information · needs review
Source information · needs review · 2 original source entries · Multiple original values retained · Different source wording or units; verify before publishing
Source information · needs review
Battery, range & charging
- Energy / fuel type
- BEV
- Battery Electric (BEV)
- Battery type
- LFP Battery
- Battery capacity
- 55.587/55.742/55.607kWh kWh
- CLTC range
- 505 km
Source information · needs review · 2 original source entries · Multiple original values retained · Different source wording or units; verify before publishing
Source information · needs review
Source information · needs review
Source information · needs review
Chassis & performance
- Ground clearance
- 125 mm
- Curb weight
- 1610 kg
- Gross vehicle weight
- 2135 kg
- Top speed
- 130 km/h
- Acceleration as listed
- - s
- Front suspension
- MacPherson Strut (Independent)
- Rear suspension
- Torsion Beam (Semi-Independent)
Source information · needs review
Source information · needs review
Source information · needs review
Source information · needs review
Source information · needs review
Source information · needs review
Source information · needs review
Safety & comfort equipment
- Original equipment description
- FWD
Source information · needs review
